XS8E1A1PBM8
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

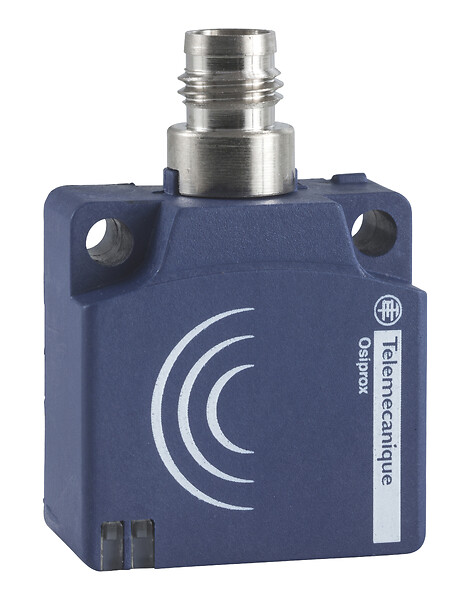

Inductive proximity sensors XS, inductive sensor XS8 26x26x13, PBT, Sn15mm, 12…24 VDC, M8
جزئیات محصول
| وزن | 42 گرم |
|---|---|
| ابعاد | 9 × 6.6 × 4.4 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS8 |
| Sensor design |
Flat form 26 x 26 x 13 |
| Size |
13 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NC |
| Electrical connection |
3 pins ,Male connector M8 |
| Discrete output type |
PNP |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Switching capacity in mA |
<= 100 mA DC with overload and short-circuit protection |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Differential travel |
1…15 % of Sr |
| Sensing range |
8…15 mm |
| Switching frequency |
<= 2000 Hz |
| Residual current |
1.5 mA open state |
| Current consumption |
<= 10 mA no-load |
| Voltage drop |
<2 V (closed) |
| Delay first up |
10 MILLISECOND |
| Marking |
CE |
| Delay response |
0.3 MILLISECOND |
| Delay recovery |
0.8 MILLISECOND |
| Product certifications |
CSAULEcolab |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.4 CENTIMETER |
| Package 1 width |
6.6 CENTIMETER |
| Package 1 weight |
42 GRAM |
| Package 1 length |
9 CENTIMETER |
| Unit type of package 2 |
S01 |
| Number of units in package |
20 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.035 KILOGRAM |
