XS8S173NAL2C
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

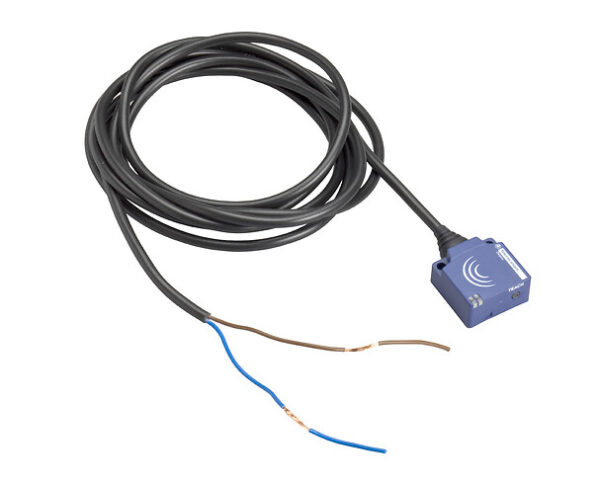

Inductive proximity sensors XS, little square 17x17mm, PBT, flush, Sn 5 mm, NPN, NO, cable 2 m
جزئیات محصول
| وزن | 67 گرم |
|---|---|
| ابعاد | 12.979 × 12.468 × 2.815 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Basic |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS8 |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NO |
| Electrical connection |
Cable |
| Discrete output type |
NPN |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Switching capacity in mA |
<= 100 mA DC with overload and short-circuit protection |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Detection face |
Frontal |
| Front material |
PBT |
| Differential travel |
+/- 10 % of Sr |
| Wire insulation material |
PVC |
| Cable composition |
3 x 0.30 mm² |
| Switching frequency |
<= 1000 Hz |
| Residual current |
1.5 mA open state |
| Current consumption |
<= 15 mA no-load |
| Voltage drop |
<2.5 V (closed) |
| Delay first up |
10 MILLISECOND |
| Marking |
CE |
| Delay response |
1.2 MILLISECOND |
| Delay recovery |
0.5 MILLISECOND |
