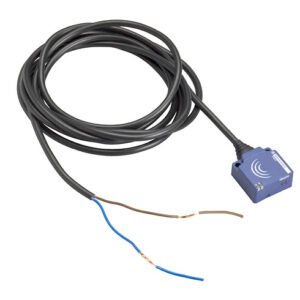

Inductive proximity sensors XS, little square 17x17mm, PBT, non flush, Sn 8 mm, NPN, NO, cable 2 m
جزئیات محصول
| وزن | 70 گرم |
|---|---|
| ابعاد | 15 × 21 × 2.5 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Basic |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS8 |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| Discrete output type | NPN |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Switching capacity in mA | <= 100 mA DC with overload and short-circuit protection |
| Detector flush mounting acc | Non flush mountable |
| Material | Plastic |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | +/- 10 % of Sr |
| Wire insulation material | PVC |
| Cable composition | 3 x 0.30 mm² |
| Switching frequency | <= 800 Hz |
| Residual current | 1.5 mA open state |
| Current consumption | <= 15 mA no-load |
| Voltage drop | <2.5 V (closed) |
| Delay first up | 10 MILLISECOND |
| Marking | CE |
| Delay response | 1.2 MILLISECOND |
| Delay recovery | 0.5 MILLISECOND |
