XS918R1PAL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

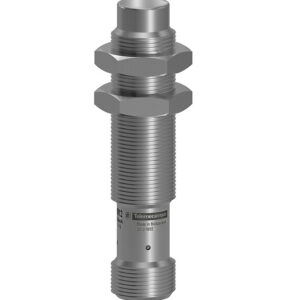

Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 303, Sn10 mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 91 گرم |
|---|---|
| ابعاد | 19 × 22 × 2.4 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS9 |
| Device application |
Harsh environment application |
| Sensor design |
Cylindrical M18 |
| Size |
64 mm |
| Body type |
Single piece body |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NO |
| Detector flush mounting acc |
Flush mountable |
| Discrete output type |
PNP |
| Material |
Stainless steel 303 |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Output circuit type |
DC |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP68 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Enclosure material |
Stainless steel 303 |
| Detection face |
Frontal |
| Thread type |
M18 x 1 |
| Front material |
Stainless steel 303 |
| Sensing range |
8…15 mm |
| Differential travel |
1…15 % of Sr |
| Repeat accuracy |
<= 5 % of Sr |
| Residual current |
0.1 mA open state |
| Status LED |
Output state: 1 LED (yellow) |
| Voltage drop |
<2 V (closed) |
| Current consumption |
<= 10 mA no-load |
| Delay first up |
40 MILLISECOND |
| Delay response |
0.0001 MILLISECOND |
| Marking |
CE |
| Delay recovery |
0.015 MILLISECOND |
| Product certifications |
cULus |
| Vibration resistance |
25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2.4 CENTIMETER |
| Package 1 width |
22 CENTIMETER |
| Package 1 length |
19 CENTIMETER |
| Package 1 weight |
91 GRAM |
| Unit type of package 2 |
CAR |
| Number of units in package |
10 |
| Package 2 height |
2.4 CENTIMETER |
| Package 2 width |
22 CENTIMETER |
| Package 2 length |
19 CENTIMETER |
| Package 2 weight |
2.275 KILOGRAM |
