XS930S1PAM12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

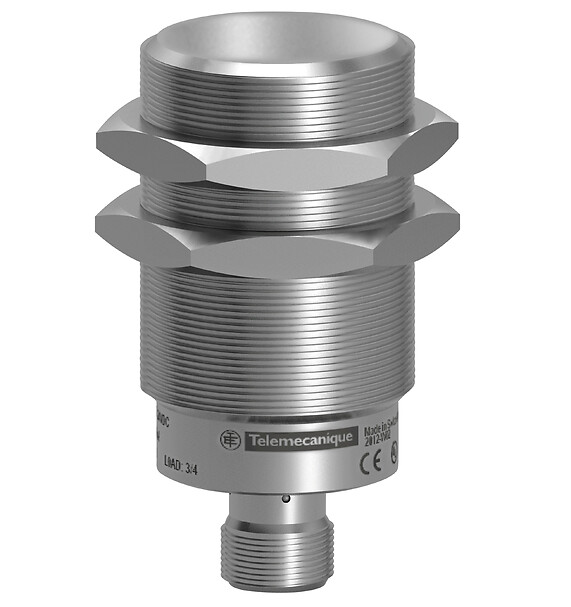

Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 316L, Sn20 mm, 12…24 VDC, M12
جزئیات محصول
| وزن | 147 گرم |
|---|---|
| ابعاد | 15 × 9 × 3.5 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS9 |
| Device application | Food and beverage |
| Sensor design | Cylindrical M30 |
| Size | 64 mm |
| Body type | Single piece body |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acc | Flush mountable |
| Discrete output type | PNP |
| Material | Stainless steel 316L |
| Electrical connection | 4 pins, Male connector M12 |
| [Us] rated supply voltage | 12…24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Enclosure material | Stainless steel 316L |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Front material | Stainless steel 316L |
| Sensing range | > 15…40 mm |
| Differential travel | 1…15 % of Sr |
| Repeat accuracy | <= 5 % of Sr |
| Residual current | 0.1 mA open state |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 100 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 40 MILLISECOND |
| Delay response | 0.0001 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.015 MILLISECOND |
| Product certifications | cULusEcolab |
| Vibration resistance | 25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 15 CENTIMETER |
| Package 1 weight | 147 GRAM |
| Unit type of package 2 | S01 |
| Number of units in package | 25 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.862 KILOGRAM |
