XS9C4A2A1G13SCU
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

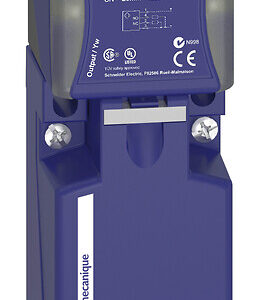

Inductive proximity sensors XS, inductive sensor XS9, PBT, 24 V DC, cable
جزئیات محصول
| وزن | 252 گرم |
|---|---|
| ابعاد | 14.5 × 5 × 5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS9 |
| Size |
15 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Analogue |
| Wiring technique |
2-wire |
| Electrical connection |
Screw terminal block |
| [Us] rated supply voltage |
24 V DC |
| IP degree of protection |
IP68 double insulation conforming to IEC 60529 |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Repeat accuracy |
<= 3% of Sr |
| Status LED |
Without |
| Output current drift |
10 PERCENTAGE |
| Current consumption |
0…4 mA no-load |
| Marking |
CE |
| Product certifications |
CSAUL |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
5 CENTIMETER |
