XS9D111A2M12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

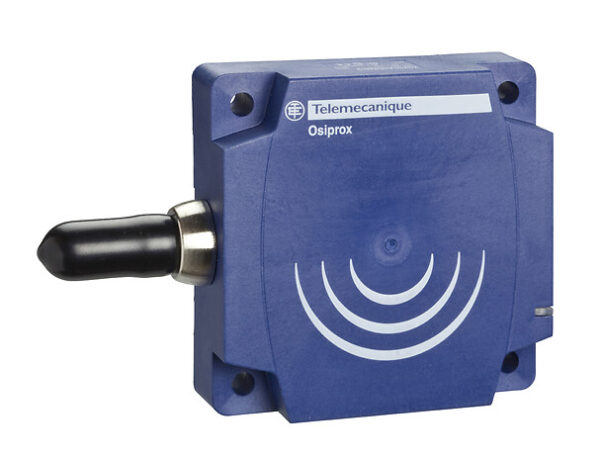

Inductive proximity sensors XS, inductive sensor XS9 80x80x26, PBT, Sn40mm, 24 VDC, M12
جزئیات محصول
| وزن | 373 گرم |
|---|---|
| ابعاد | 13 × 9.5 × 4.1 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS9 |
| Sensor design |
Flat form 80 x 80 x 26 |
| Size |
26 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Analogue |
| Wiring technique |
2-wire |
| Electrical connection |
4 pins ,Male connector M12 |
| Analogue output range |
4…20 mA |
| [Us] rated supply voltage |
24 V DC |
| IP degree of protection |
IP67 double insulation conforming to IEC 60529 |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Repeat accuracy |
<= 3% of Sr |
| Linearity error |
+/- 2 mA |
| Sensing range |
> 15…40 mm |
| Status LED |
Without |
| Switching frequency |
<= 100 Hz |
| Output current drift |
10 PERCENTAGE |
| Current consumption |
0…4 mA no-load |
| Marking |
CE |
| Product certifications |
CSAULEcolab |
