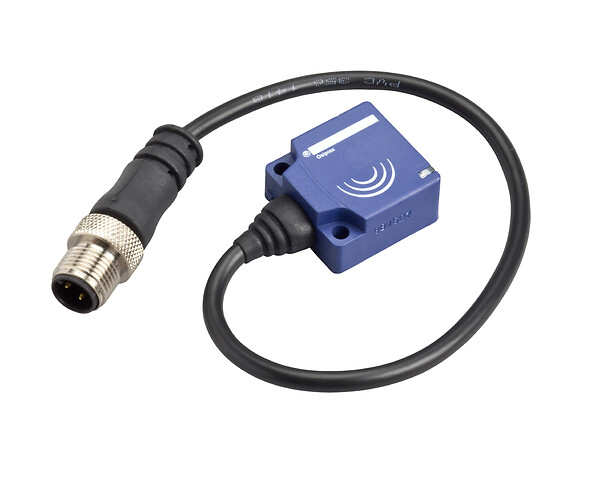

Inductive proximity sensors XS, inductive sensor XS9 26x26x13, PBT, Sn10mm, 24 VDC, M12 0.15 m
جزئیات محصول
| وزن | 47 گرم |
|---|---|
| ابعاد | 8.8 × 6.6 × 3.4 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS9 |
| Sensor design |
Flat form 26 x 26 x 13 |
| Size |
13 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Analogue |
| Wiring technique |
2-wire |
| Electrical connection |
4 pins ,Remote male connector M12 |
| Analogue output range |
0…10 V |
| [Us] rated supply voltage |
24 V DC |
| IP degree of protection |
IP67 double insulation conforming to IEC 60529 |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Repeat accuracy |
<= 3% of Sr |
| Linearity error |
+/- 1 V |
| Sensing range |
8…15 mm |
| Status LED |
Without |
| Switching frequency |
<= 1000 Hz |
| Output current drift |
10 PERCENTAGE |
| Current consumption |
0…4 mA no-load |
| Marking |
CE |
| Product certifications |
CSAULEcolab |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3.4 CENTIMETER |
| Package 1 width |
6.6 CENTIMETER |
| Package 1 weight |
47 GRAM |
| Package 1 length |
8.8 CENTIMETER |
| Unit type of package 2 |
S01 |
| Number of units in package |
22 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.21 KILOGRAM |
