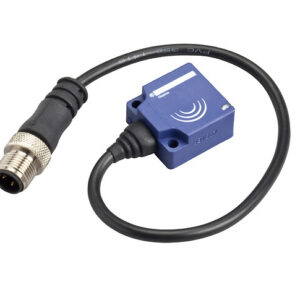

Inductive proximity sensors XS, inductive sensor XS9 26x26x13, PBT, Sn10mm, 24 VDC, cable 2 m
جزئیات محصول
| وزن | 93 گرم |
|---|---|
| ابعاد | 13.2 × 9.5 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS9 |
| Sensor design |
Flat form 26 x 26 x 13 |
| Size |
13 mm |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Analogue |
| Wiring technique |
3-wire |
| Electrical connection |
Cable |
| Analogue output range |
0…10 V |
| [Us] rated supply voltage |
24 V DC |
| IP degree of protection |
IP68 double insulation conforming to IEC 60529 |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Output circuit type |
DC |
| Detection face |
Frontal |
| Front material |
PBT |
| Repeat accuracy |
<= 3% of Sr |
| Wire insulation material |
PVC |
| Linearity error |
+/- 1 V |
| Cable composition |
3 x 0.34 mm² |
| Sensing range |
8…15 mm |
| Status LED |
Without |
| Switching frequency |
<= 1000 Hz |
| Output current drift |
10 PERCENTAGE |
| Current consumption |
0…4 mA no-load |
