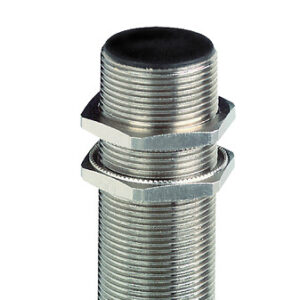

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6…150c/mn, 24…240VAC/DC, cable 10 m
جزئیات محصول
| وزن | 242 گرم |
|---|---|
| ابعاد | 8 × 14.8 × 4.5 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Product or component type |
Sensor |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XSA |
| Device application |
Rotation monitoring |
| Sensor design |
Cylindrical M30 |
| Size |
81 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Flush mountable |
| Material |
Metal |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
24…210 V DC ,24…240 V AC 50/60 Hz |
| Output circuit type |
AC/DC |
| Switching capacity in mA |
5…200 mA DC ,5…350 mA AC |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M30 x 1.5 |
| Front material |
PPS |
| Sensing range |
8…15 mm |
| Differential travel |
3…15% of Fr |
| Repeat accuracy |
<= 3% of Sr |
| Cable composition |
2 x 0.34 mm² |
| Residual current |
1.5 mA open state |
| Status LED |
Output state: 1 LED (red) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 100 Hz |
| Voltage drop |
<5.7 V (closed) |
| Marking |
CE |
| Product certifications |
CSACCCUL |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.5 CENTIMETER |
| Package 1 width |
14.8 CENTIMETER |
| Package 1 length |
8 CENTIMETER |
| Package 1 weight |
242 GRAM |
