XSAV12801L10
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

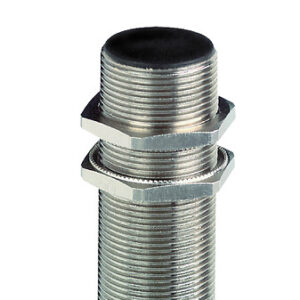

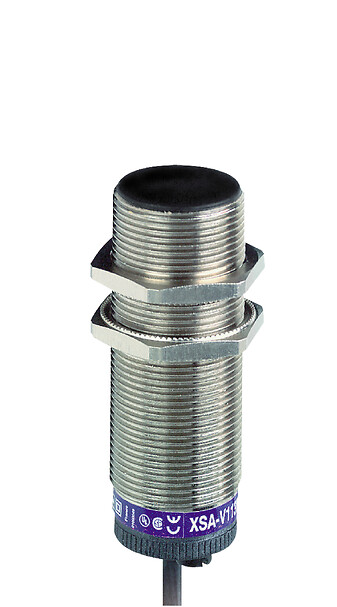

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 120…3000c/mn, 24…240VAC/DC, cable 10 m
جزئیات محصول
| وزن | 424 گرم |
|---|---|
| ابعاد | 15 × 9.8 × 9.2 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Product or component type |
Sensor |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XSA |
| Device application |
Rotation monitoring |
| Sensor design |
Cylindrical M30 |
| Size |
81 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Flush mountable |
| Material |
Metal |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
24…210 V DC ,24…240 V AC 50/60 Hz |
| Output circuit type |
AC/DC |
| Switching capacity in mA |
5…200 mA DC ,5…350 mA AC |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M30 x 1.5 |
| Front material |
PPS |
| Sensing range |
8…15 mm |
| Differential travel |
3…15% of Fr |
| Repeat accuracy |
<= 3% of Sr |
| Cable composition |
2 x 0.34 mm² |
| Residual current |
1.5 mA open state |
| Status LED |
Output state: 1 LED (red) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 800 Hz |
| Voltage drop |
<5.7 V (closed) |
| Marking |
CE |
| Product certifications |
CSACCCUL |
| Unit type of package 1 |
PCE |
| Package 1 height |
9.2 CENTIMETER |
| Package 1 width |
9.8 CENTIMETER |
| Package 1 length |
15 CENTIMETER |
| Package 1 weight |
424 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
7 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
3.346 KILOGRAM |
