XSAV32373TF
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

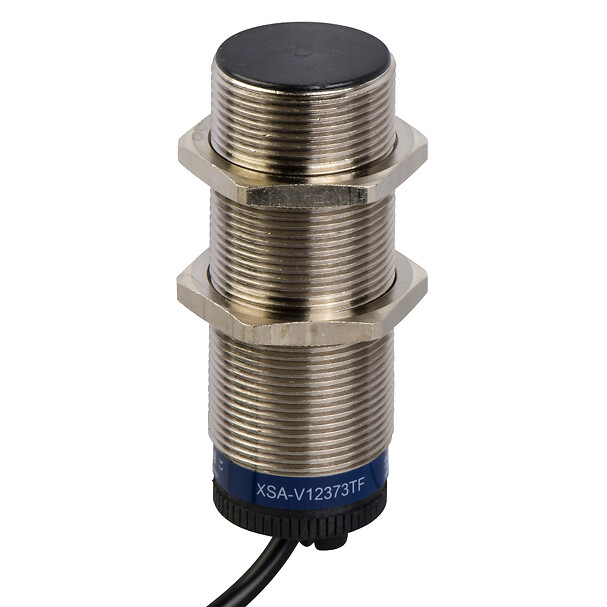

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 120…3000c/mn, 12…48 VDC, cable 2 m
جزئیات محصول
| وزن | 238 گرم |
|---|---|
| ابعاد | 8.2 × 4.5 × 13.3 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Product or component type |
Sensor |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XSA |
| Device application |
Rotation monitoring |
| Sensor design |
Cylindrical M30 |
| Size |
81 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NC |
| Detector flush mounting acc |
Flush mountable |
| Discrete output type |
PNP |
| Material |
Metal |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
12…48 V DC with reverse polarity protection |
| Output circuit type |
DC |
| Switching capacity in mA |
<= 200 mA with overload and short-circuit protection |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M30 x 1.5 |
| Front material |
PPS |
| Sensing range |
8…15 mm |
| Differential travel |
3…15% of Fr |
| Repeat accuracy |
<= 3% of Sr |
| Cable composition |
3 x 0.34 mm² |
| Residual current |
1.5 mA open state |
| Status LED |
Output state: 1 LED (red) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 800 Hz |
| Voltage drop |
<1.8 V (closed) |
| Current consumption |
0…15 mA no-load |
| Marking |
CE |
| Product certifications |
CSACCCUL |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
13.3 CENTIMETER |
| Package 1 width |
4.5 CENTIMETER |
| Package 1 length |
8.2 CENTIMETER |
| Package 1 weight |
238 GRAM |
