XSDA500519TF
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

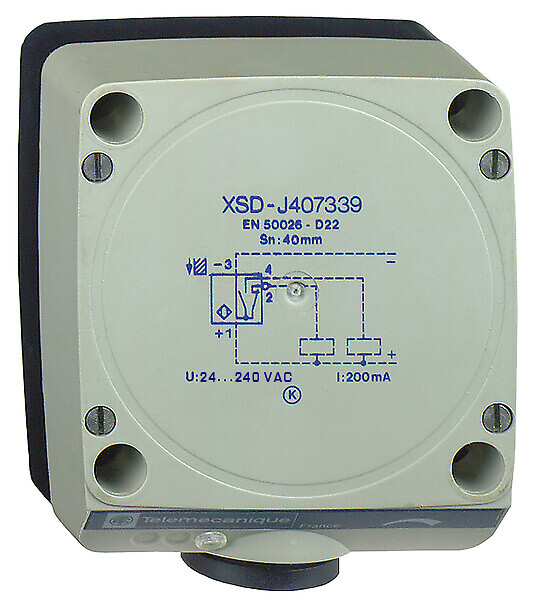

Inductive proximity sensors XS, inductive sensor XSD 80x80x40, plastic, Sn40mm, 24…240 VAC, terminals
جزئیات محصول
| وزن | 480 گرم |
|---|---|
| ابعاد | 8.2 × 4 × 10.1 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XSD |
| Sensor design |
Form 80 x 80 x 40 |
| Size |
40 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO or 1 NC programmable |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Electrical connection |
Screw-clamp terminals |
| [Us] rated supply voltage |
12…240 V AC |
| Output circuit type |
AC |
| IP degree of protection |
IP67 |
| Cable entry |
1 entry tapped for Pg 13.5 cable gland |
| Enclosure material |
Plastic |
| Detection face |
5 positions turret head |
| Front material |
Plastic |
| Sensing range |
> 40…60 mm |
| Switching frequency |
<= 10 Hz |
| Product certifications |
CCC |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
10.1 CENTIMETER |
| Package 1 width |
4 CENTIMETER |
| Package 1 length |
8.2 CENTIMETER |
| Package 1 weight |
0.48 KILOGRAM |
