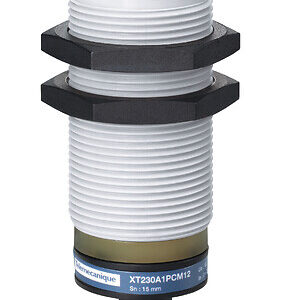

Capacitive proximity sensors XT, cylindrical M30, plastic, Sn 15 mm, 24…240 V AC
جزئیات محصول
| وزن | 100 گرم |
|---|---|
| ابعاد | 12 × 6 × 5 سانتیمتر |
| Sensor type |
Capacitive proximity sensor |
| Product specific applicatio |
Animal feedingdetection of insulated or conductive materials |
| Sensor name |
XT2 |
| Sensor design |
Cylindrical M30 |
| Size |
100 mm |
| Body type |
Fixed |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Enclosure material |
Plastic |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO or 1 NC programmable |
| Output circuit type |
ACDC |
| Electrical connection |
Screw clamp terminal |
| [Us] rated supply voltage |
24…240 V AC 50…60 Hz |
| Delay response |
10 MILLISECOND |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| ISO thread |
M30 x 1.5 |
| Detection face |
Frontal |
| Cable entry |
– |
| Differential travel |
< 1…15 % Sr |
| Repeat accuracy |
< 5 % Sr |
| Status LED |
Output state indication: 1 LED (yellow) |
| Residual current |
120 mA open state |
| Switching frequency |
<= 40 Hz |
| Voltage drop |
<2 V (closed) |
| Current consumption |
< 3 mA |
| Delay first up |
100 MILLISECOND |
| Delay recovery |
10 MILLISECOND |
| Marking |
CE |
| Setting-up |
Sensitivity by potentiometer |
| Standards |
UL 61010-1IEC 60947-5-2 |
| Product certifications |
cULus |
| Vibration resistance |
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical insulation class |
Class I |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
5 CENTIMETER |
