XT232A1FAL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

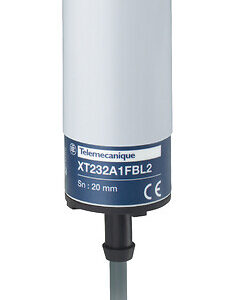

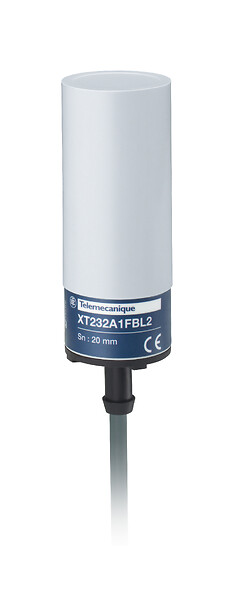

Capacitive proximity sensors XT, cylindrical Ø 32 mm, plastic, Sn 20 mm, cable 2 m
جزئیات محصول
| وزن | 208 گرم |
|---|---|
| ابعاد | 14 × 13 × 4 سانتیمتر |
| Sensor type |
Capacitive proximity sensor |
| Product specific applicatio |
Detection of insulated or conductive materials |
| Sensor name |
XT2 |
| Sensor design |
Cylindrical Ø 32 mm plain |
| Size |
80 mm |
| Body type |
Fixed |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Plastic |
| Enclosure material |
Plastic |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO |
| Output circuit type |
AC |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
24 V DC ,24…240 V AC 50…60 Hz |
| Delay response |
30 MILLISECOND |
| IP degree of protection |
IP67 double insulation conforming to IEC 60529 |
| Detection face |
Frontal |
| Differential travel |
< 1…20 % Sr |
| Repeat accuracy |
< 5 % Sr |
| Wire insulation material |
PVC |
| Status LED |
Output state indication: 1 LED (yellow) |
| Switching frequency |
<= 15 Hz |
| Voltage drop |
<10 V (closed) |
| Current consumption |
< 4 mA |
| Delay first up |
200 MILLISECOND |
| Delay recovery |
30 MILLISECOND |
| Marking |
CE |
| Setting-up |
Sensitivity by potentiometer |
| Standards |
IEC 60947-5-2 |
| Product certifications |
cULus |
| Vibration resistance |
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4 CENTIMETER |
| Package 1 width |
13 CENTIMETER |
| Package 1 length |
14 CENTIMETER |
| Package 1 weight |
208 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
25 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
5.635 KILOGRAM |
