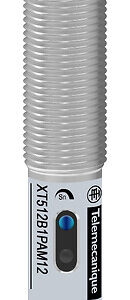

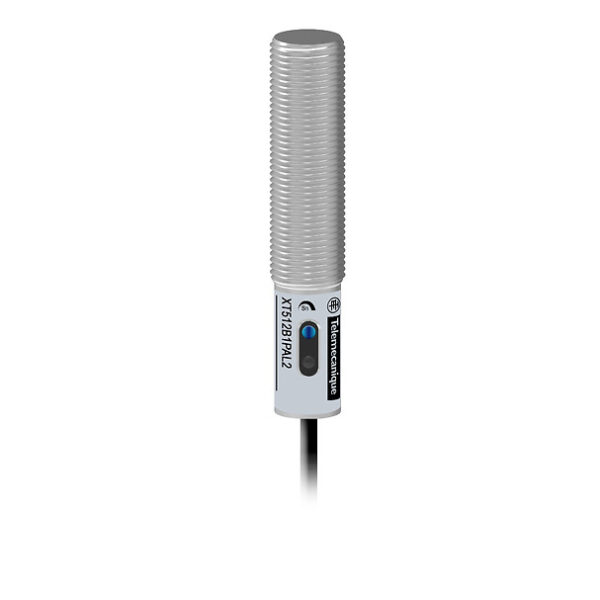

Capacitive proximity sensors XT, cylindrical M12, brass, 3-wire, Sn 2mm, 24 V DC, cable 2m, 1 NO
جزئیات محصول
| وزن | 82 گرم |
|---|---|
| ابعاد | 14 × 12 × 1.5 سانتیمتر |
| Sensor type | Capacitive proximity sensor |
| Product specific applicatio | Detection of insulated or conductive materials |
| Sensor name | XT5 |
| Sensor design | Cylindrical M12 |
| Size | 63 mm |
| Body type | Fixed |
| Detector flush mounting acc | Flush mountable |
| Material | Nickel copper alloy |
| Enclosure material | Nickel copper alloy |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24 V DC with reverse polarity protection |
| Delay response | 15 MILLISECOND |
| IP degree of protection | IP65 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| ISO thread | M12 x 1 |
| Detection face | Frontal |
| Differential travel | < 0.2 x Sr |
| Repeat accuracy | < 0.1 x Sr |
| Wire insulation material | PVC |
| Status LED | Output state indication: 1 LED (yellow) |
| Residual current | 0.1 mA open state |
| Switching frequency | <= 40 Hz |
| Voltage drop | <2.5 V (closed) |
| Current consumption | < 15 mA |
| Delay first up | 300 MILLISECOND |
| Delay recovery | 15 MILLISECOND |
| Marking | CE |
| Setting-up | Sensitivity by potentiometer |
| Standards | UL 61010-1IEC 60947-5-2 |
| Product certifications | cULus |
| Vibration resistance | 10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical insulation class | Class III conforming to IEC 61140 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 1.5 CENTIMETER |
