XT530B1PCM12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

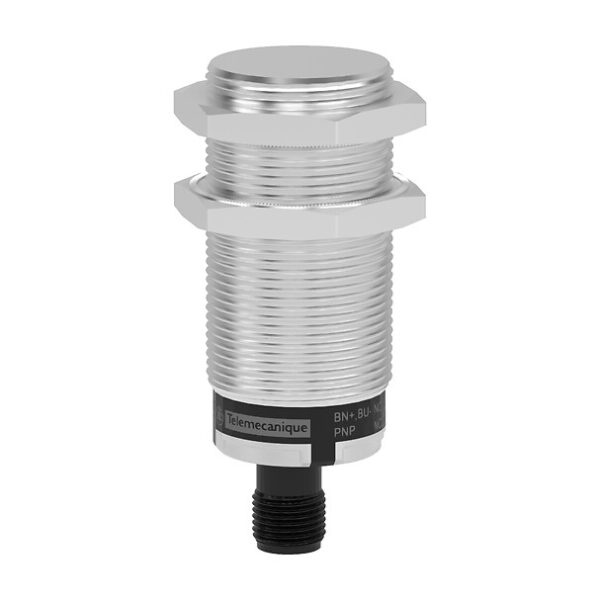

Capacitive proximity sensors XT, cylindrical M30, brass, 4-wire, Sn 10 mm, 24 V DC, 1 NC + 1 NO
جزئیات محصول
| وزن | 124 گرم |
|---|---|
| ابعاد | 13 × 11 × 3 سانتیمتر |
| Product or component type |
Sensor |
| Sensor type |
Capacitive proximity sensor |
| Product specific applicatio |
Detection of insulated or conductive materials |
| Sensor name |
XT5 |
| Sensor design |
Cylindrical M30 |
| Size |
64 mm |
| Body type |
Fixed |
| Detector flush mounting acc |
Flush mountable |
| Material |
Metal |
| Enclosure material |
Nickel plated brass |
| Type of output signal |
Discrete |
| Wiring technique |
4-wire |
| Discrete output function |
1 NC + 1 NO |
| Output circuit type |
DC |
| Discrete output type |
PNP |
| Electrical connection |
4 pins ,Male connector M12 |
| [Us] rated supply voltage |
24 V DC with reverse polarity protection |
| Delay response |
15 MILLISECOND |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
| ISO thread |
M30 x 1.5 |
| Detection face |
Frontal |
| Front material |
PBT |
| Differential travel |
< 0.2 x Sr |
| Repeat accuracy |
< 0.1 x Sr |
| Status LED |
Output state indication: 1 LED (yellow) ,power status: 1 LED (green) |
| Residual current |
0.1 mA open state |
| Protection type |
Short-circuit protection |
| Switching frequency |
<= 25 Hz |
| Voltage drop |
<2.5 V (closed) |
| Current consumption |
< 15 mA |
| Delay first up |
300 MILLISECOND |
| Delay recovery |
15 MILLISECOND |
| Marking |
CE |
| Setting-up |
Sensitivity by potentiometer |
| Standards |
UL 61010-1IEC 60947-5-2 |
| Product certifications |
cULus |
| Vibration resistance |
10 gn amplitude = 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical insulation class |
Class III conforming to IEC 61140 |
