قیمت محصول
توضیحات

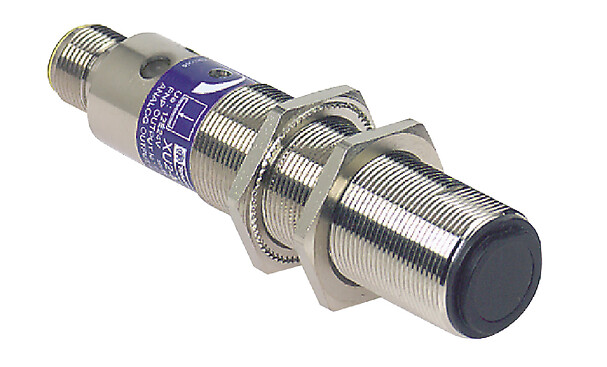

Photoelectric sensors XU, XU2, emitter, 24…240VAC/DC, 1/2″
جزئیات محصول
| وزن | 200 گرم |
|---|---|
| ابعاد | 8.5 × 10.5 × 5.5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor transmitter |
| Sensor name |
XU2 |
| Sensor design |
Cylindrical M18 |
| Detection system |
Thru beam |
| Material |
Metal |
| Supply circuit type |
AC/DC |
| Wiring technique |
2-wire |
| Electrical connection |
1 male connector 1/2"20 UNF ,3 pins |
| Emission |
– |
| Enclosure material |
Nickel plated brass |
| Lens material |
PMMA |
| Add on output |
Without |
| [Us] rated supply voltage |
24…240 V AC/DC |
| Switching capacity in mA |
10…200 mA (to be used with 0.4 A quick-blow fuse in series with the load) |
| Delay first up |
300 MILLISECOND |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
5.5 CENTIMETER |
| Package 1 width |
10.5 CENTIMETER |
| Package 1 length |
8.5 CENTIMETER |
| Package 1 weight |
200 GRAM |
