XU5M18AB20D
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

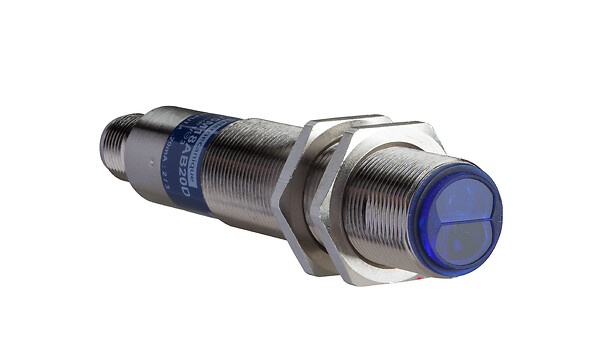

Photoelectric sensors XU, XU5, diffuse, analog, Sn 0.4 m, 12…24VDCM12
جزئیات محصول
| وزن | 88 گرم |
|---|---|
| ابعاد | 4.2 × 9.2 × 6.4 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XU5 |
| Sensor design |
Cylindrical M18 |
| Detection system |
Diffuse |
| Material |
Metal |
| Type of output signal |
Analogue |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| [Sn] nominal sensing distan |
0.05-0.4 m diffuse |
| Discrete output type |
PNP |
| Analogue output range |
– |
| Electrical connection |
1 male connector M12 ,4 pins |
| Product specific applicatio |
Not applicable |
| Emission |
Infrared diffuse |
| Enclosure material |
Nickel plated brass |
| Lens material |
PMMA |
| Add on output |
With analogue output |
| Status LED |
1 LED (green) for output state |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
4…20 mA |
| Current consumption |
<= 30 mA no-load |
| Delay first up |
50 MILLISECOND |
| Setting-up |
Sensitivity adjustment with potentiometer |
| Vibration resistance |
25 gn ,amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
6.4 CENTIMETER |
| Package 1 width |
9.2 CENTIMETER |
| Package 1 length |
4.2 CENTIMETER |
| Package 1 weight |
88 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
22 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.154 KILOGRAM |
