XU8M18MA230K
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

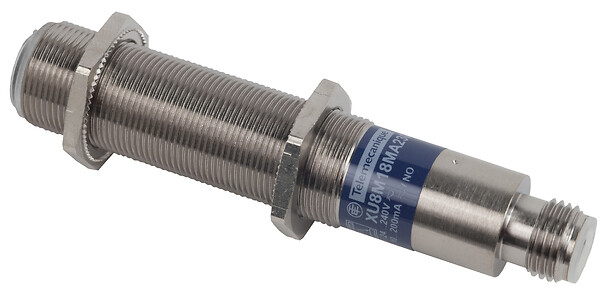

Photoelectric sensors XU, XU8, BGS, Sn 0.12 m, 24…240VAC/DC, 1/2″
جزئیات محصول
| وزن | 84 گرم |
|---|---|
| ابعاد | 10 × 6.4 × 4 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XU8 |
| Sensor design |
Cylindrical M18 |
| Detection system |
Diffuse with background suppression |
| Material |
Metal |
| Type of output signal |
Discrete |
| Supply circuit type |
AC/DC |
| Wiring technique |
2-wire |
| [Sn] nominal sensing distan |
0.12-0.12 m diffuse with background suppression |
| Discrete output function |
1 NO |
| Electrical connection |
1 male connector 1/2"20 UNF ,3 pins |
| Product specific applicatio |
Not applicable |
| Emission |
infrared diffuse with background suppression |
| Enclosure material |
Nickel plated brass |
| Lens material |
PMMA |
| Output type |
Solid state |
| Add on output |
Without |
| Status LED |
1 LED (yellow) for output state |
| [Us] rated supply voltage |
24…240 V AC/DC |
| Residual current |
– |
| Switching capacity in mA |
10…200 mA (to be used with 0.4 A quick-blow fuse in series with the load) |
| Maximum voltage drop |
<6 V (closed state) |
| Delay first up |
300 MILLISECOND |
| Delay response |
20 MILLISECOND |
| Delay recovery |
20 MILLISECOND |
| Setting-up |
Sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4 CENTIMETER |
| Package 1 width |
6.4 CENTIMETER |
| Package 1 length |
10 CENTIMETER |
| Package 1 weight |
84 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
22 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.02 KILOGRAM |
