قیمت محصول
توضیحات

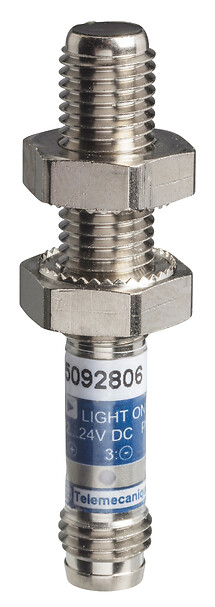

Photoelectric sensors XU, XUA, emitter, 12…24 VDC, M8
جزئیات محصول
| وزن | 31 گرم |
|---|---|
| ابعاد | 9.5 × 6.5 × 4.3 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application assembly |
| Electronic sensor type |
Photo-electric sensor transmitter |
| Sensor name |
XUA |
| Sensor design |
Cylindrical M8 |
| Detection system |
Thru beam |
| Material |
Metal |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Electrical connection |
1 male connector M8 ,3 pins |
| Emission |
– |
| Enclosure material |
Nickel plated brass |
| Lens material |
PMMA |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Current consumption |
<= 15 mA |
| Delay first up |
20 MILLISECOND |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.3 CENTIMETER |
| Package 1 width |
6.5 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
31 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
24 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
886 GRAM |
