XUAH0214
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

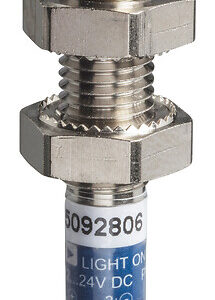

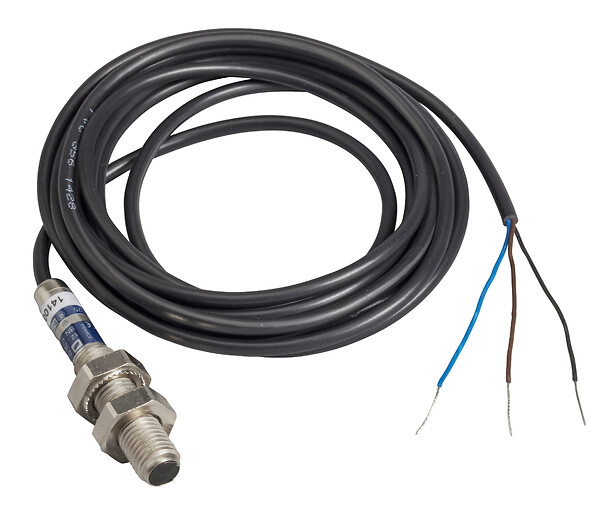

Photoelectric sensors XU, XUA, thru beam, Sn 2 m, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 50 گرم |
|---|---|
| ابعاد | 9.6 × 6.5 × 4.3 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application assembly |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUA |
| Sensor design |
Cylindrical M8 |
| Detection system |
Thru beam |
| Material |
Metal |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| [Sn] nominal sensing distan |
2-2 m thru beam need a transmitter XUAH0203 |
| Discrete output type |
PNP |
| Discrete output function |
1 NO |
| Electrical connection |
Cable |
| Product specific applicatio |
Not applicable |
| Emission |
infrared thru beam |
| Enclosure material |
Nickel plated brass |
| Lens material |
Polyamide |
| Output type |
Solid state |
| Add on output |
Without |
| Cable composition |
3 x 0.14 mm² |
| Status LED |
1 LED (yellow) for output state |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Maximum voltage drop |
<1 V (closed state) |
| Current consumption |
<= 10 mA no-load |
| Delay first up |
20 MILLISECOND |
| Delay response |
0.25 MILLISECOND |
| Delay recovery |
0.25 MILLISECOND |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.3 CENTIMETER |
| Package 1 width |
6.5 CENTIMETER |
| Package 1 length |
9.6 CENTIMETER |
| Package 1 weight |
50 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
24 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.398 KILOGRAM |
