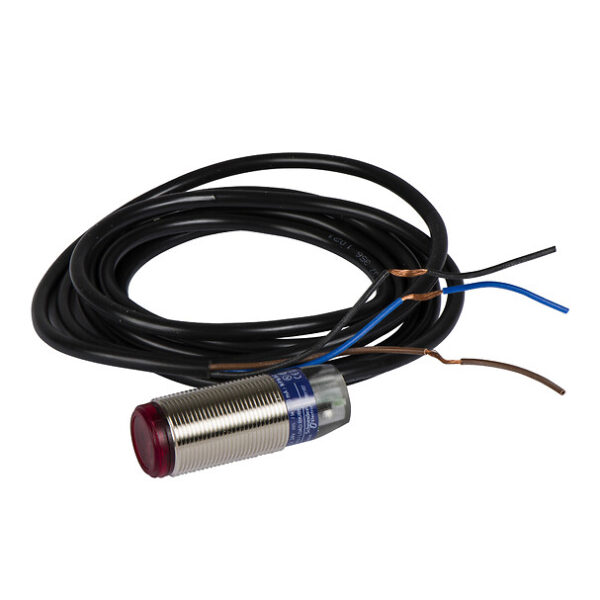

Photoelectric sensors XU, XUB, multi, Sn 0…20 m, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 124 گرم |
|---|---|
| ابعاد | 13.2 × 9.7 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose multimode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUB |
| Sensor design |
Cylindrical M18 |
| Detection system |
Multimode |
| Material |
Metal |
| Line of sight type |
Axial |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
PNP |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
Cable |
| Product specific applicatio |
Not applicable |
| Emission |
Infrared diffuse ,infrared diffuse with background suppression ,infrared thru beam ,red polarised reflex |
| Enclosure material |
Nickel plated brass |
| Lens material |
PMMA |
| Output type |
Solid state |
| Add on output |
Without |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Status LED |
1 LED (green) for supply ,1 LED (red) for instability ,1 LED (yellow) for output state |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
250 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Current consumption |
35 mA no-load |
| Delay first up |
200 MILLISECOND |
| Delay response |
2 MILLISECOND |
| Delay recovery |
2 MILLISECOND |
| Setting-up |
Self teaching |
