XUB2ANXNM12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Photoelectric sensors XU, Photo electric sensor, Cylindrical, Plastic, Thru-beam, System, Smax 30m, NPN, Connector M12
جزئیات محصول
| وزن | 40 گرم |
|---|---|
| ابعاد | 4.4 × 1.6 × 1.8 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUB |
| Sensor design |
Cylindrical M18 |
| Detection system |
Thru beam |
| Material |
Plastic |
| Line of sight type |
Axial |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
4 wires |
| [Sn] nominal sensing distan |
20-20 m thru beam |
| Discrete output type |
NPN |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M12 ,4 pins |
| Emission |
Red LED thru beam |
| Enclosure material |
PC/PBT |
| Lens material |
PMMA |
| Output type |
Discrete |
| Status LED |
1 LED (green) for receiver/supply on/stability ,1 LED (green) for transmitter/supply on ,1 LED (orange) for receiver/output |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
1000 Hz |
| Maximum voltage drop |
<2 V (closed state)no-load |
| Current consumption |
< 20 mA no load |
| Delay first up |
100 MILLISECOND |
| Delay response |
0.5 MILLISECOND |
| Delay recovery |
0.5 MILLISECOND |
| Setting-up |
Sensitivity by potentiometer |
| Kit composition |

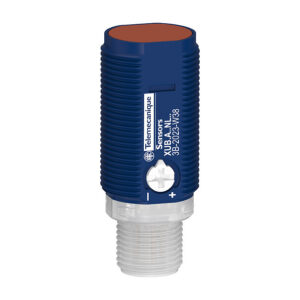

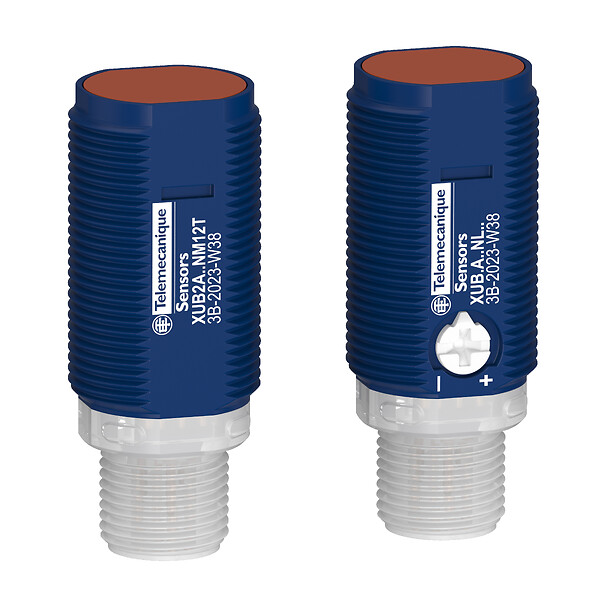

Transmitter XUB2AKXNM12T + receiver XUB2ANXNM12R |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050-9 |
| Unit type of package 1 |
PCE |
| Package 1 height |
1.8 CENTIMETER |
| Package 1 width |
1.6 CENTIMETER |
| Package 1 length |
4.4 CENTIMETER |
| Package 1 weight |
40 GRAM |
| Unit type of package 2 |
S02 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.235 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
768 |
| Package 3 height |
70 CENTIMETER |
| Package 3 width |
60 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
44.26 KILOGRAM |
