قیمت محصول
توضیحات

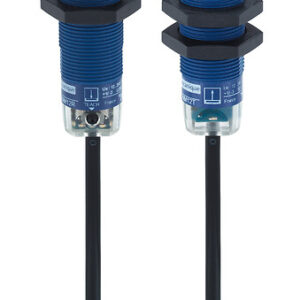

Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12…24 VDC, M12
جزئیات محصول
| وزن | 61 گرم |
|---|---|
| ابعاد | 13 × 7 × 3.6 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUB |
| Sensor design |
Cylindrical M18 |
| Detection system |
Thru beam |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
NPN |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M12 |
| Emission |
Red laser class 1 670 nm conforming to IEC 825-1 |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Output type |
Solid state |
| Status LED |
– |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Voltage drop |
<1.5 V (closed state) |
| Current consumption |
25 mA no-load |
| Maximum power consumption i |
– |
| Delay first up |
80 MILLISECOND |
| Delay response |
0.4 MILLISECOND |
| Setting-up |
With sensitivity adjustment |
| Delay recovery |
0.4 MILLISECOND |
| Kit composition |
Transmitter + receiver XUBLAKCNM12T + XUBLANCNM12R |
| Vibration resistance |
7 gn ,amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 (double insulation) |
| Unit type of package 1 |
PCE |
| Package 1 height |
3.6 CENTIMETER |
| Package 1 width |
7 CENTIMETER |
| Package 1 length |
13 CENTIMETER |
| Package 1 weight |
61 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
15 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.132 KILOGRAM |
