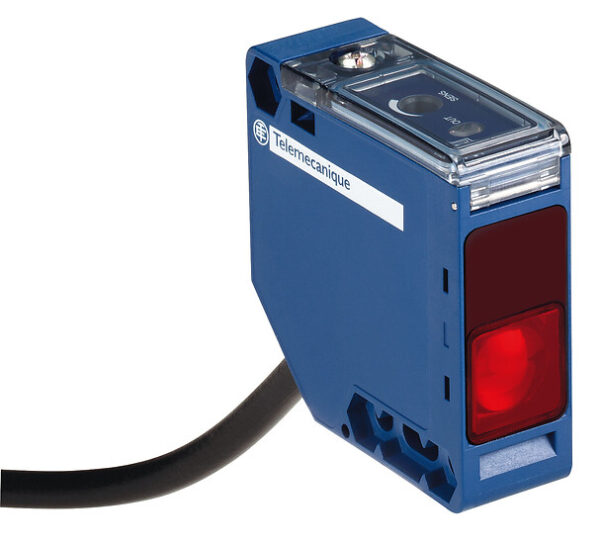

Photoelectric sensors XU, XUK, emitter, 24…240 VAC, cable 2 m
جزئیات محصول
| وزن | 154 گرم |
|---|---|
| ابعاد | 4.2 × 9.5 × 13.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose multimode |
| Electronic sensor type |
Photo-electric sensor transmitter |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Thru beam |
| Material |
Plastic |
| Supply circuit type |
AC/DC |
| Wiring technique |
2-wire |
| Electrical connection |
Cable |
| Product specific applicatio |
Not applicable |
| Emission |
infrared thru beam |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Status LED |
1 LED (green) for supply on |
| [Us] rated supply voltage |
12…240 V DC ,24…240 V AC |
| Switching capacity in mA |
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Time delay range |
0…10 s monostable ,on-delay or off-delay (programmable) delay |
| Switching frequency |
20 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
