XUK1ARCNL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

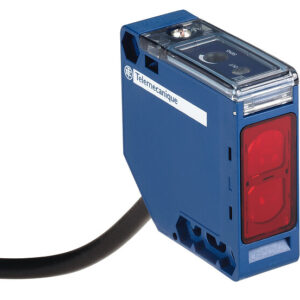

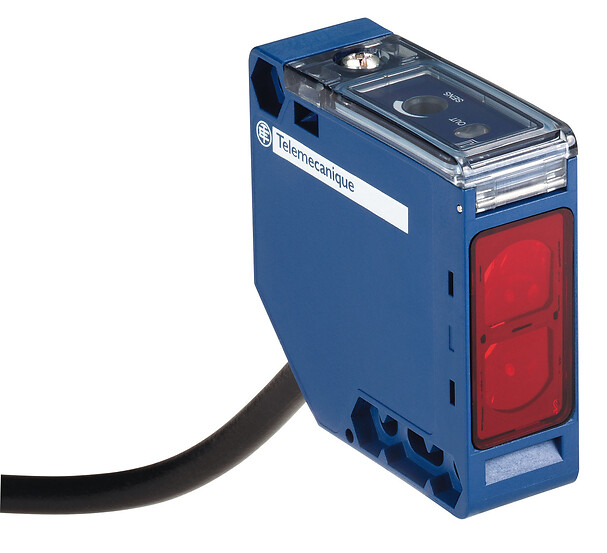

Photoelectric sensors XU, XUK, reflex, Sn 7 m, 24…240VAC/DC, cable 2 m
جزئیات محصول
| وزن | 185 گرم |
|---|---|
| ابعاد | 9.6 × 13.2 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Reflex |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
AC/DC |
| Wiring technique |
5-wire |
| [Sn] nominal sensing distan |
7-7 m reflex need reflector XUZC50 |
| Discrete output function |
1 C/O |
| Electrical connection |
Cable |
| Product specific applicatio |
Not applicable |
| Emission |
Infrared reflex |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Output type |
Relay |
| Cable composition |
5 x 0.34 mm² |
| Status LED |
1 LED (green) for supply ,1 LED (yellow) for output state |
| [Us] rated supply voltage |
24…240 V AC/DC |
| Switching capacity in mA |
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Switching frequency |
20 Hz |
| Current consumption |
<= 35 mA no-load |
| Maximum power consumption i |
– |
| Delay first up |
60 MILLISECOND |
| Delay response |
25 MILLISECOND |
| Delay recovery |
25 MILLISECOND |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 double insulation conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
13.2 CENTIMETER |
| Package 1 length |
9.6 CENTIMETER |
| Package 1 weight |
185 GRAM |
| Unit type of package 2 |
S02 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.641 KILOGRAM |
| Unit type of package 3 |
PAL |
| Number of units in package |
352 |
| Package 3 height |
77 CENTIMETER |
| Package 3 width |
60 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
80.9 KILOGRAM |
