XUK2ARCNL10R
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

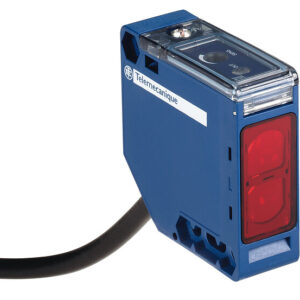

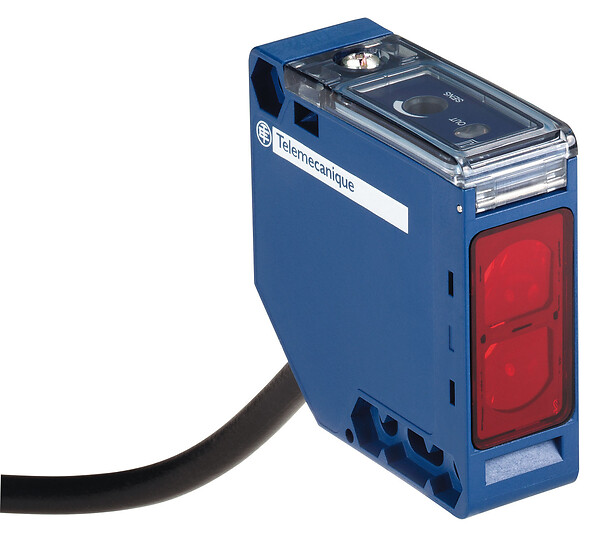

Photoelectric sensors XU, XUK, receiver, Sn 30 m, 24…240VAC/DC, cable 10 m
جزئیات محصول
| وزن | 584 گرم |
|---|---|
| ابعاد | 14 × 15 × 8.5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor receiver |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Thru beam |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
AC/DC |
| Wiring technique |
5-wire |
| [Sn] nominal sensing distan |
30-30 m thru beam need a transmitter XUK2ARCNL10T |
| Discrete output function |
1 NC + 1 NO |
| Electrical connection |
Cable |
| Product specific applicatio |
Not applicable |
| Emission |
infrared thru beam |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Output type |
Relay |
| Add on output |
Without |
| Status LED |
1 LED (yellow) for output state |
| [Us] rated supply voltage |
24…240 V AC/DC |
| Switching capacity in mA |
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Switching frequency |
20 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Maximum power consumption i |
– |
| Delay first up |
60 MILLISECOND |
| Delay response |
25 MILLISECOND |
| Delay recovery |
25 MILLISECOND |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 double insulation conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
8.5 CENTIMETER |
| Package 1 width |
15 CENTIMETER |
| Package 1 length |
14 CENTIMETER |
| Package 1 weight |
584 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
10 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
6.18 KILOGRAM |
