قیمت محصول
توضیحات

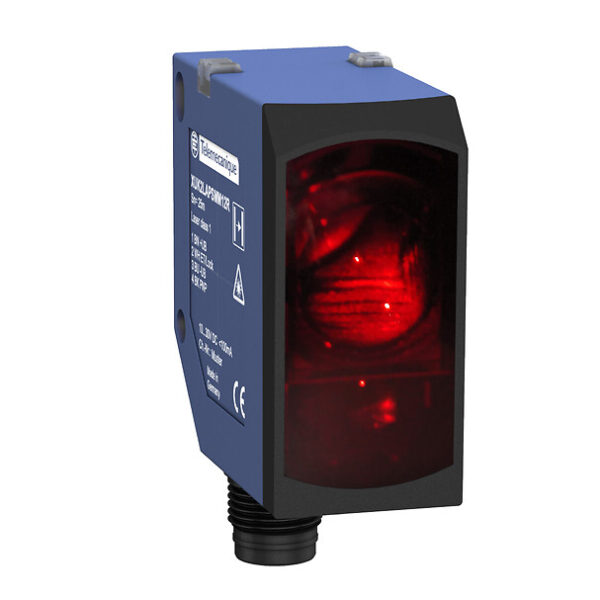

Photoelectric sensors XU, photo electric laser sensor, XUK, thru beam transmitter, Sn 30 m -10…30 VDC, M12
جزئیات محصول
| وزن | 49 گرم |
|---|---|
| ابعاد | 9 × 6 × 3 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application assemblyApplication material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Thru beam |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
4-wire |
| Electrical connection |
1 male connector M12 ,4 pins |
| Product specific applicatio |
Not applicable |
| Emission |
Red laser thru beam class 1 |
| Enclosure material |
ABS/PC |
| Lens material |
PMMA |
| Add on output |
Without |
| Status LED |
1 LED (green) for supply |
| Add on input |
Test |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Maximum voltage drop |
<2.4 V (closed state) |
| Current consumption |
<= 30 mA no-load |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Product certifications |
CEcULusEcolab |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60947-5-2 |
| IP degree of protection |
IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3 CENTIMETER |
| Package 1 width |
6 CENTIMETER |
| Package 1 length |
9 CENTIMETER |
| Package 1 weight |
49 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
28 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.597 KILOGRAM |
