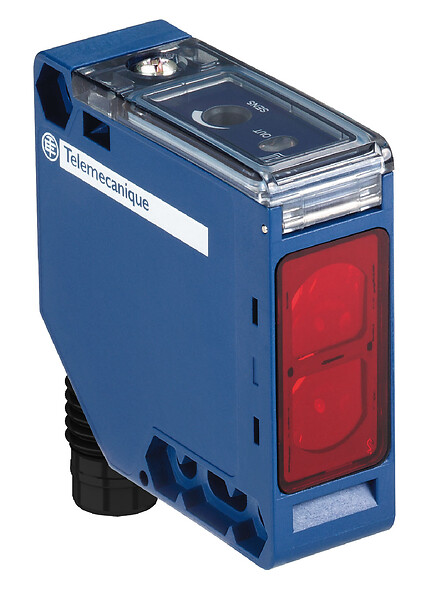

XUK5APBNM12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Photoelectric sensors XU, XUK, diffuse, Sn 1 m, 12…24 VDC, M12
جزئیات محصول
| وزن | 58 گرم |
|---|---|
| ابعاد | 6.6 × 9.6 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| [Sn] nominal sensing distan |
1-1 m diffuse |
| Discrete output type |
PNP |
| Discrete output function |
1 NC |
| Electrical connection |
1 male connector M12 ,4 pins |
| Product specific applicatio |
Not applicable |
| Emission |
Infrared diffuse |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Output type |
Solid state |
| Status LED |
1 LED (yellow) for output state |
| [Us] rated supply voltage |
12…24 V DC |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
250 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Current consumption |
<= 35 mA no-load |
| Delay first up |
15 MILLISECOND |
| Delay response |
2 MILLISECOND |
| Delay recovery |
2 MILLISECOND |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 double insulation conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
9.6 CENTIMETER |
| Package 1 length |
6.6 CENTIMETER |
| Package 1 weight |
58 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
44 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
3.226 KILOGRAM |
