قیمت محصول
توضیحات

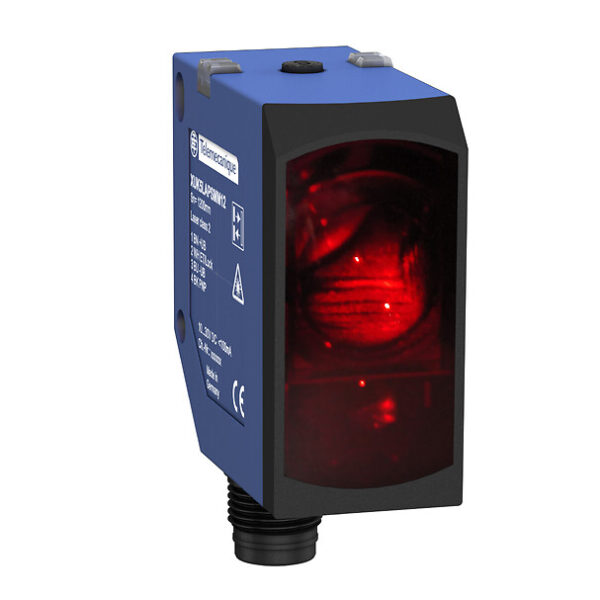

Photoelectric sensors XU, photo electric laser sensor, XUK, diffuse energetic, Sn 1,2 m, 10…30 VDC, M12
جزئیات محصول
| وزن | 48 گرم |
|---|---|
| ابعاد | 9.4 × 6.4 × 4.1 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application assemblyApplication material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
4-wire |
| Discrete output type |
PNP |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M12 ,4 pins |
| Product specific applicatio |
Not applicable |
| Emission |
Red laser diffuse class 1 |
| Enclosure material |
ABS/PC |
| Lens material |
PMMA |
| Cable composition |
3 x 0.34 mm² |
| Output type |
Solid state |
| Wire insulation material |
PVC |
| Status LED |
1 LED (green/yellow) for supply on/output state ,1 LED (yellow) for output state |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Maximum voltage drop |
<1.5 V (closed state) |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
250 Hz |
| Current consumption |
<= 30 mA no-load |
| Delay first up |
300 MILLISECOND |
| Delay response |
0.8 MILLISECOND |
| Setting-up |
Using teach button or remote teaching |
| Delay recovery |
0.8 MILLISECOND |
| Vibration resistance |
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Product certifications |
CEcULusEcolab |
| Shock resistance |
10 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.1 CENTIMETER |
| Package 1 width |
6.4 CENTIMETER |
| Package 1 length |
9.4 CENTIMETER |
| Package 1 weight |
48 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
28 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.572 KILOGRAM |
