قیمت محصول
توضیحات

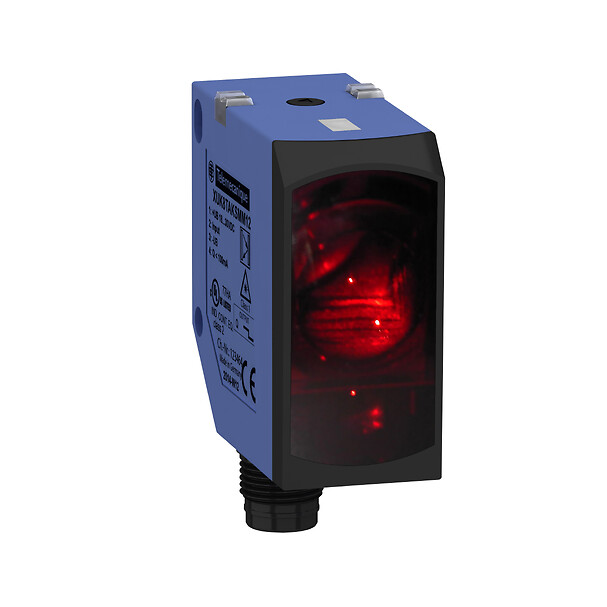

Photoelectric sensors XU, XUK, diffuse, Sn 5 m 1out IOLINK or auto PNP/NPN
جزئیات محصول
| وزن | 56 گرم |
|---|---|
| ابعاد | 6 × 9 × 2.8 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application assemblyApplication material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Diffuse with background suppression |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Wiring technique |
4-wire |
| Discrete output type |
PNP or NPNIOLINK |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M12 ,4 pins |
| Product specific applicatio |
Distance measurement on object |
| Emission |
Red laser diffuse with background suppression class 1 conforming to IEC 60825-1 |
| Enclosure material |
ABS/PC |
| Lens material |
PMMA |
| Output type |
Solid state |
| Status LED |
1 LED (green/yellow) for supply on/output state ,1 LED (yellow) for output state |
| [Us] rated supply voltage |
24 V DC with reverse polarity protection |
| Maximum voltage drop |
<1.5 V (closed state) |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Current consumption |
<= 60 mA no-load |
| Delay first up |
300 MILLISECOND |
| Delay response |
2 MILLISECOND |
| Setting-up |
Using teach button or remote teaching |
| Delay recovery |
2 MILLISECOND |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 ,IP69K conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2.8 CENTIMETER |
| Package 1 width |
9 CENTIMETER |
| Package 1 length |
6 CENTIMETER |
| Package 1 weight |
56 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
28 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.765 KILOGRAM |
