قیمت محصول
توضیحات

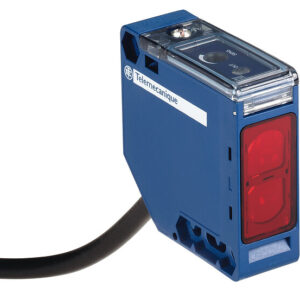

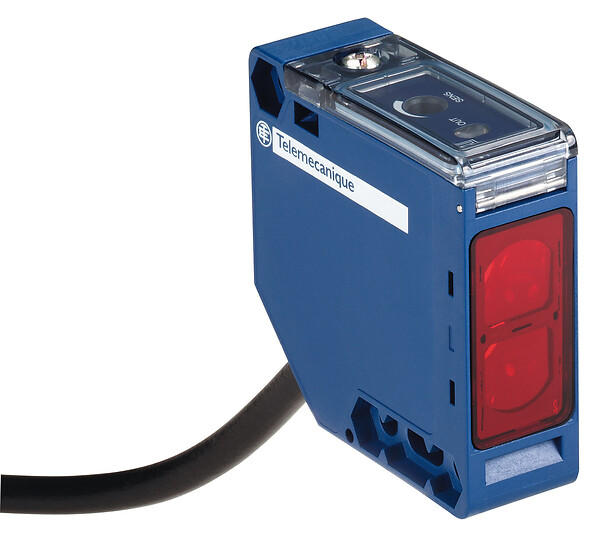

Photoelectric sensors XU, XUK, polarised, Sn 5 m, 24…240VAC/DC, cable 5 m
جزئیات محصول
| وزن | 326 گرم |
|---|---|
| ابعاد | 13 × 13 × 5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Polarised reflex |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
AC/DC |
| Wiring technique |
5-wire |
| [Sn] nominal sensing distan |
6-6 m polarised reflex need reflector XUZC50 |
| Discrete output function |
1 C/O |
| Electrical connection |
Cable |
| Product specific applicatio |
Not applicable |
| Emission |
red polarised reflex |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Output type |
Relay |
| Status LED |
1 LED (green) for supply on ,1 LED (yellow) for output state |
| [Us] rated supply voltage |
24…240 V AC/DC |
| Switching capacity in mA |
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Switching frequency |
20 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Current consumption |
<= 35 mA no-load |
| Maximum power consumption i |
– |
| Delay first up |
60 MILLISECOND |
| Delay response |
25 MILLISECOND |
| Delay recovery |
25 MILLISECOND |
| Setting-up |
Without sensitivity adjustment |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60947-5-2 |
| IP degree of protection |
IP65 double insulation conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
5 CENTIMETER |
| Package 1 width |
13 CENTIMETER |
| Package 1 length |
13 CENTIMETER |
| Package 1 weight |
326 GRAM |
| Unit type of package 2 |
S01 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
3.431 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
320 |
| Package 3 height |
75 CENTIMETER |
| Package 3 width |
40 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
129.32 KILOGRAM |
