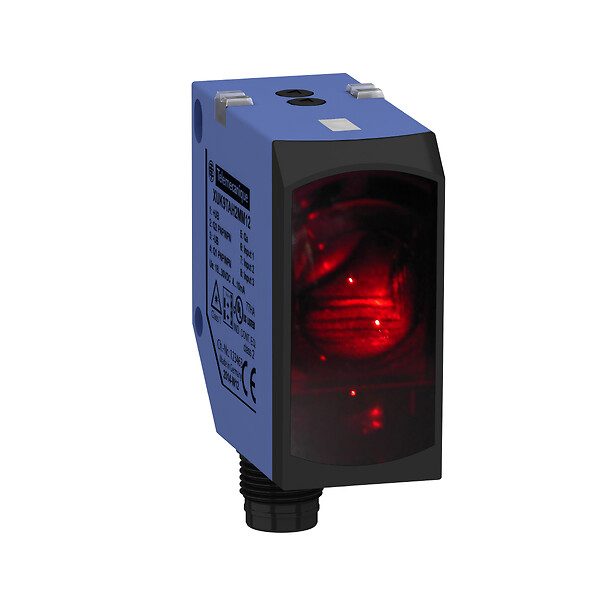

Photoelectric sensors XU, photo electric laser sensor, XUK, reflex, Sn 70 m, 2Q 1Qa 3IN, hoisting app
جزئیات محصول
| وزن | 58 گرم |
|---|---|
| ابعاد | 9.2 × 6 × 3 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application hoisting |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUK |
| Sensor design |
Compact 50 x 50 |
| Detection system |
Polarised reflex |
| Material |
Plastic |
| Type of output signal |
Analogue + discrete |
| Supply circuit type |
DC |
| Wiring technique |
8-wire |
| Discrete output type |
PNP or NPN |
| Analogue output range |
– |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M12 ,8 pins |
| Product specific applicatio |
Distance measurement on reflector |
| Emission |
Red laser polarised reflex class 1 conforming to IEC 60825-1 |
| Enclosure material |
ABS/PC |
| Lens material |
PMMA |
| Output type |
Analogsolid state |
| Add on output |
With alarm output |
| Status LED |
1 LED (green/yellow) for supply on/output state ,1 LED (yellow) for output state |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Maximum voltage drop |
<2 V (closed state) |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Current consumption |
<= 35 mA no-load |
| Delay first up |
300 MILLISECOND |
| Delay response |
10 MILLISECOND |
| Setting-up |
Using teach button or remote teaching |
| Delay recovery |
10 MILLISECOND |
| Vibration resistance |
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
10 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3 CENTIMETER |
| Package 1 width |
6 CENTIMETER |
| Package 1 length |
9.2 CENTIMETER |
| Package 1 weight |
58 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
28 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.641 KILOGRAM |
