قیمت محصول
توضیحات

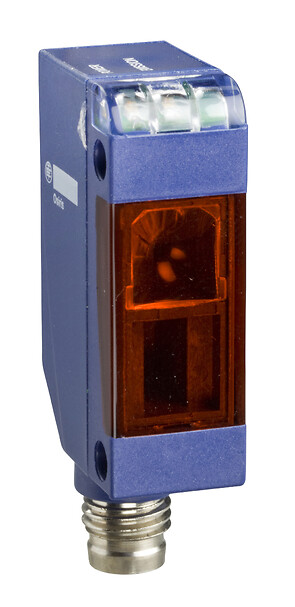

Photoelectric sensors XU, XUM, multi, Sn 0…10 m, 12…24 VDC, M8
جزئیات محصول
| وزن | 35 گرم |
|---|---|
| ابعاد | 9.7 × 6.7 × 4.2 سانتیمتر |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose multimode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUM |
| Sensor design | Miniature |
| Detection system | Multimode |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| Discrete output type | PNP |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M8, 4 pins |
| Product specific applicatio | Not applicable |
| Emission | Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex |
| Enclosure material | PBT |
| Lens material | PMMA |
| Output type | Solid state |
| Add on output | 50 mA, With alarm output |
| [Us] rated supply voltage | 12…24 V DC with reverse polarity protection |
| Status LED | 1 LED (green) for supply, 1 LED (red) for instability, 1 LED (yellow) for output state |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Switching frequency | 250 Hz240 Hz |
| Maximum voltage drop | <1.5 V (closed state) |
| Current consumption | 35 mA no-load |
| Delay first up | 100 MILLISECOND |
| Delay response | 2 MILLISECOND |
| Delay recovery | 2 MILLISECOND |
| Setting-up | Self teaching |
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
