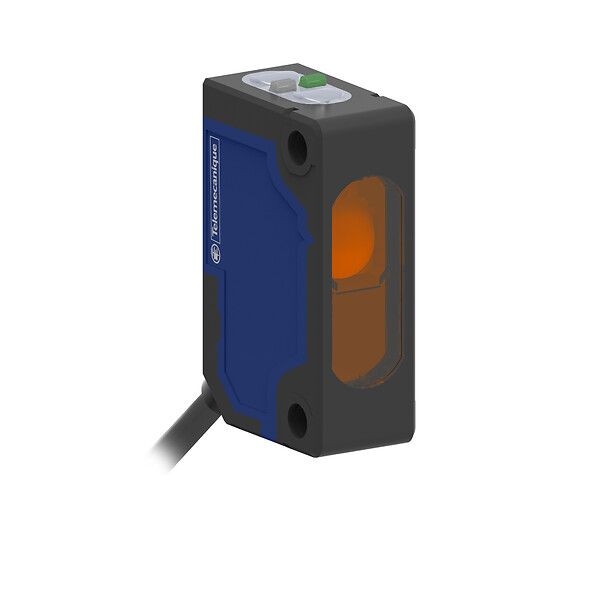

Photoelectric sensors XU, miniature, thru beam, Smax=30 m, transmitter, cable 2 m
جزئیات محصول
| وزن | 50 گرم |
|---|---|
| ابعاد | 21 × 2 × 13.5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor transmitter |
| Sensor name |
XUM |
| Sensor design |
Miniature |
| Detection system |
Thru beam |
| Material |
Plastic |
| Supply circuit type |
DC |
| Wiring technique |
2-wire |
| Electrical connection |
Cable |
| Emission |
– |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Status LED |
– |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA with overload and short-circuit protection |
| Switching frequency |
1000 Hz |
| Maximum voltage drop |
<2 V |
| Current consumption |
20 mA no-load |
| Delay first up |
100 MILLISECOND |
| Vibration resistance |
9 gn ,amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6 |
| Shock resistance |
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
13.5 CENTIMETER |
| Package 1 width |
2 CENTIMETER |
| Package 1 length |
21 CENTIMETER |
| Package 1 weight |
50 GRAM |
