XUM5APXBL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

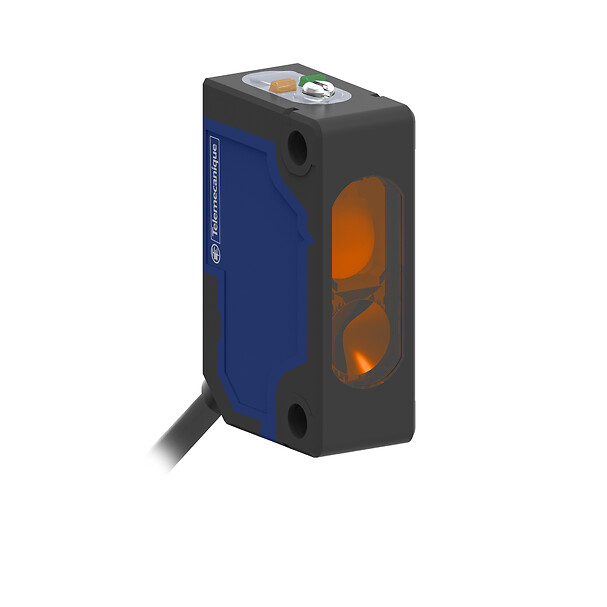

Photoelectric sensors XU, miniature, diffuse long, Smax=1.9 m, PNP, cable 2 m
جزئیات محصول
| وزن | 51 گرم |
|---|---|
| ابعاد | 10 × 10 × 2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUM |
| Sensor design |
Miniature |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
PNP |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
Cable |
| Emission |
– |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Status LED |
– |
| Output type |
Solid state |
| Wire insulation material |
PVC |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA with overload and short-circuit protection |
| Switching frequency |
1000 Hz |
| Maximum voltage drop |
<2 V |
| Current consumption |
20 mA no-load |
| Delay first up |
100 MILLISECOND |
| Delay response |
0.5 MILLISECOND |
| Delay recovery |
0.5 MILLISECOND |
| Setting-up |
Sensitivity by potentiometer |
| Product certifications |
CEUKCAcULus |
| Vibration resistance |
9 gn ,amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6 |
| Shock resistance |
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2 CENTIMETER |
| Package 1 width |
10 CENTIMETER |
| Package 1 length |
10 CENTIMETER |
| Package 1 weight |
51 GRAM |
| Unit type of package 2 |
S04 |
| Number of units in package |
160 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
40 CENTIMETER |
| Package 2 length |
60 CENTIMETER |
| Package 2 weight |
9.895 KILOGRAM |
