قیمت محصول
توضیحات

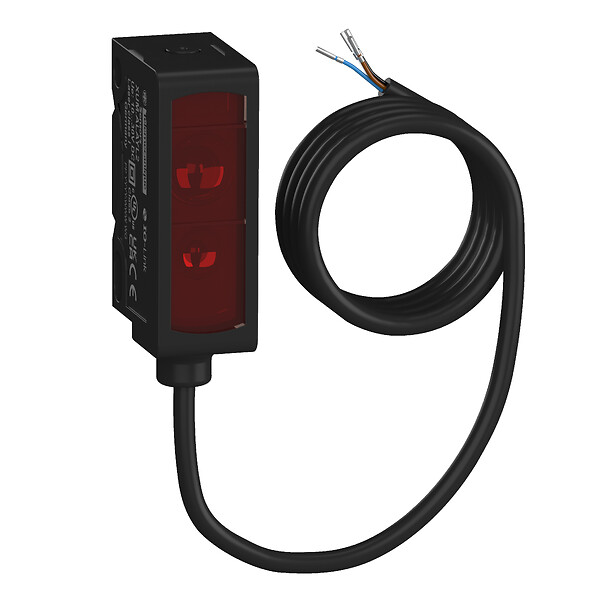

Photoelectric sensors XUM8, BGS, Laser, Sn 150mm, IO-Link, Cable 2m
جزئیات محصول
| وزن | 76 گرم |
|---|---|
| ابعاد | 14.2 × 7 × 5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application packaging |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUM |
| Sensor design |
Miniature |
| Detection system |
Diffuse with background suppression |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Discrete output type |
PNP/NPN autodetectIOLINK |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
Cable |
| Product specific applicatio |
Background suppression laser |
| Emission |
Red laser diffuse with background suppression |
| Enclosure material |
ABS |
| Lens material |
PMMA |
| Output type |
Solid state |
| Add on output |
100 mA ,Without |
| Status LED |
1 LED (green) for power ON |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Current consumption |
<= 30 mA no-load |
| Delay first up |
300 MILLISECOND |
| Delay response |
500 MICROSECOND |
| Setting-up |
Sensitivity adjustment with teach mode |
| Delay recovery |
300 MILLISECOND |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
5 CENTIMETER |
| Package 1 width |
7 CENTIMETER |
| Package 1 length |
14.2 CENTIMETER |
| Package 1 weight |
76 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
20 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.035 KILOGRAM |
