قیمت محصول
توضیحات

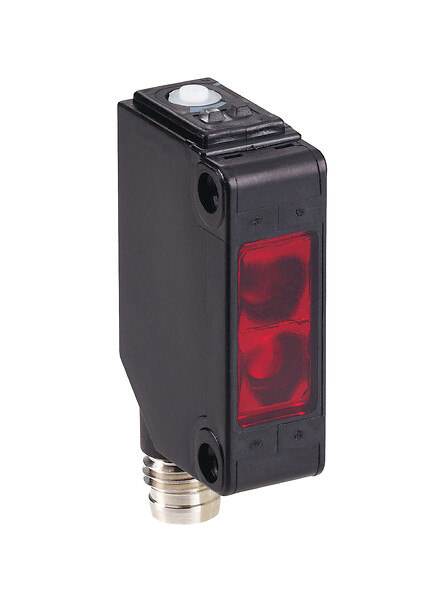

Photoelectric sensors XU, 24 VDC NPN 1 NO / 1 NC
جزئیات محصول
| وزن | 58.967 گرم |
|---|---|
| ابعاد | 8.412 × 8.412 × 8.412 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose multimode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUB |
| Sensor design |
American form |
| Detection system |
Multimode |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
NPN |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M12 ,4 pins |
| Product specific applicatio |
Not applicable |
| Emission |
Infrared diffuse ,infrared diffuse with background suppression ,infrared thru beam ,red polarised reflex |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Output type |
Solid state |
| Add on output |
<= 50 mA with overload and short-circuit protection ,With alarm output |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Status LED |
1 LED (green) for supply ,1 LED (red) for instability ,1 LED (yellow) for output state |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
250 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Current consumption |
<= 35 mA no-load |
| Delay first up |
200 MILLISECOND |
| Delay response |
2 MILLISECOND |
| Delay recovery |
2 MILLISECOND |
| Setting-up |
Self teaching |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 double insulation conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
8.412 CENTIMETER |
| Package 1 width |
8.412 CENTIMETER |
| Package 1 length |
8.412 CENTIMETER |
| Package 1 weight |
58.967 GRAM |
