XUSL4E14F076NM
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

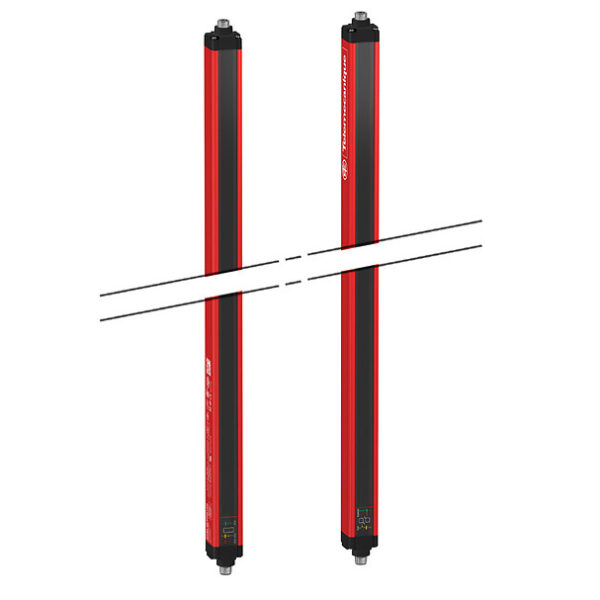

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Master for finger protection, Hp = 760 mm, R=14 mm
جزئیات محصول
| وزن | 2700 گرم |
|---|---|
| ابعاد | 85 × 19.5 × 13.5 سانتیمتر |
| Range of product |
Telemecanique Safety light curtains XUSL |
| Product or component type |
Safety light curtain type 4 |
| Device short name |
XUSL4E |
| Output type |
2 safety outputs OSSD solid-state PNP (arc suppression) |
| Product specific applicatio |
For finger protection |
| Type of start |
Automaticmanual |
| Control type |
Selected by wiring |
| Detection system |
Transmitter-receiver system |
| Kit composition |
1 receiver(s) ,1 transmitter(s) ,1 user guide with certificate of conformity on CD-ROM ,adjustable mounting bracket(s) |
| Emission |
IR LED 950 nm |
| [Us] rated supply voltage |
24 V DC +/- 20 % |
| Supply |
power supply conforming to IEC 60204-1 ,Power supply conforming to IEC 61496-1 |
| Current consumption |
42 mA no-load transmitter ,42 mA transmitter ,83 mA no-load receiver ,900 mA with maximum load receiver |
| Output voltage |
24 V |
| Output circuit type |
DC |
| Voltage drop |
<0.5 V |
