XUSL4E2BB051NM
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

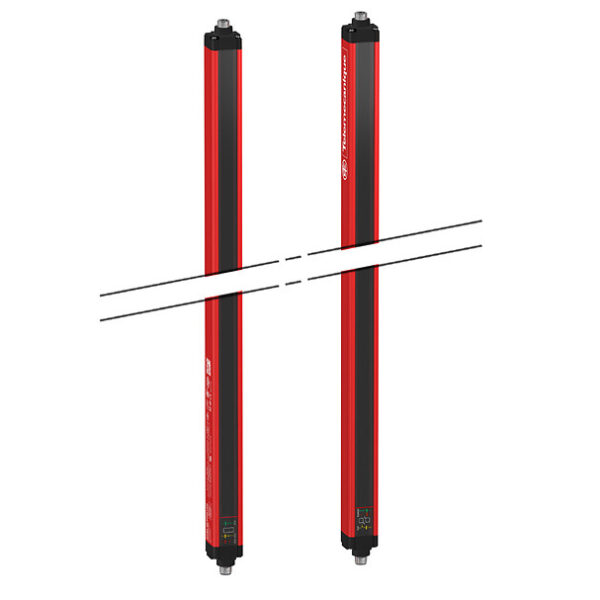

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Master, For body protection, 510 mm
جزئیات محصول
| وزن | 2200 گرم |
|---|---|
| ابعاد | 60 × 19.5 × 13.5 سانتیمتر |
| Range of product |
Telemecanique Safety light curtains XUSL |
| Product or component type |
Safety light curtain type 4 |
| Device short name |
XUSL4E |
| Output type |
2 safety outputs OSSD solid-state PNP (arc suppression) |
| Type of start |
Automaticmanual |
| Control type |
Selected by wiring |
| Detection system |
Transmitter-receiver system |
| Kit composition |
1 receiver(s) ,1 transmitter(s) ,1 user guide with certificate of conformity on CD-ROM ,adjustable mounting bracket(s) |
| Emission |
IR LED 950 nm |
| [Us] rated supply voltage |
24 V DC +/- 20 % |
| Supply |
power supply conforming to IEC 60204-1 ,Power supply conforming to IEC 61496-1 |
| Current consumption |
42 mA no-load transmitter ,42 mA transmitter ,83 mA no-load receiver ,900 mA with maximum load receiver |
| Output voltage |
24 V |
| Output circuit type |
DC |
| Voltage drop |
<0.5 V |
| Local signalling |
1 multi-colour LED transmitter ,2 dual colour LEDs receiver |
| Electrical connection |
1 male connector M12 5 pins transmitter ,1 male connector M12 8 pins receiver |
| Function available |
LED display of operating modes and faults ,muting through external safety module XPSLCMUT1160 ,Test |
| Marking |
CE |
| Material |
Aluminium: casing ,polycarbonate: front panel ,polypropylene: end caps |
| Housing colour |
Red RAL 3000 |
| Fixing mode |
By fixing brackets |
| Offer type |
Standard distance |
| Topology |
Daisy chain master |
| Directives |
89/655/EEC – work equipment89/336/EEC – electromagnetic compatibility98/37/EEC – machinery |
| Product certifications |
CETÜVcULus |
| Safety level |
category 4 conforming to ISO 13849-1 ,PL = e conforming to ISO 13849-1 ,SIL 3 conforming to IEC 61508 ,SILCL 3 conforming to IEC 62061 ,Type 4 conforming to IEC 61496-1 |
| Environmental characteristi |
Resistance to light disturbance conforming to IEC 61496-2 |
| Safety reliability data |
PFHd = 6.89E-9 1/h conforming to IEC 61508 |
| IP degree of protection |
IP65 ,IP67 |
| Shock resistance |
10 gn for 16 ms conforming to IEC 61496-1 |
| Vibration resistance |
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
13.5 CENTIMETER |
| Package 1 width |
19.5 CENTIMETER |
| Package 1 length |
60 CENTIMETER |
| Package 1 weight |
2.2 KILOGRAM |
