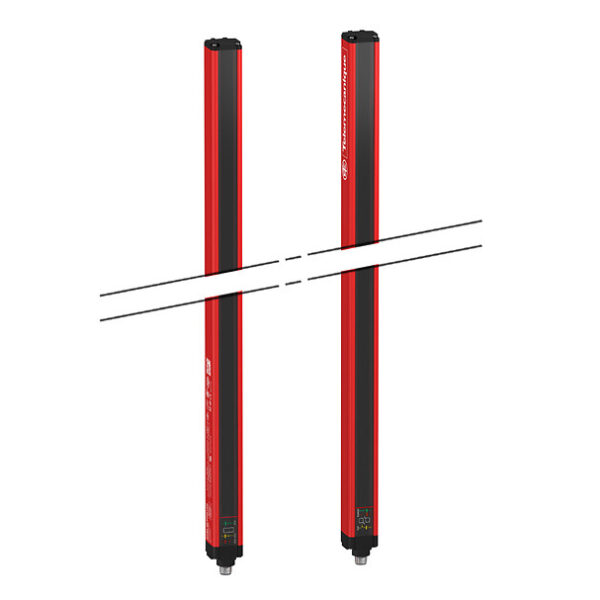

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave1, For body protection, 510 mm
جزئیات محصول
| وزن | 2200 گرم |
|---|---|
| ابعاد | 60 × 19.5 × 13.5 سانتیمتر |
| Range of product | Telemecanique Safety light curtains XUSL |
| Product or component type | Safety light curtain type 4 |
| Device short name | XUSL4E |
| Output type | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| Type of start | Automaticmanual |
| Control type | Selected by wiring |
| Detection system | Transmitter-receiver system |
| Kit composition | 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s) |
| Emission | IR LED 950 nm |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Supply | power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1 |
| Current consumption | 42 mA no-load transmitter, 42 mA transmitter, 83 mA no-load receiver, 900 mA with maximum load receiver |
| Output voltage | 24 V |
| Output circuit type | DC |
| Voltage drop | <0.5 V |
| Local signalling | 1 multi-colour LED transmitter, 2 dual colour LEDs receiver |
