XUSL4MA40H181N
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

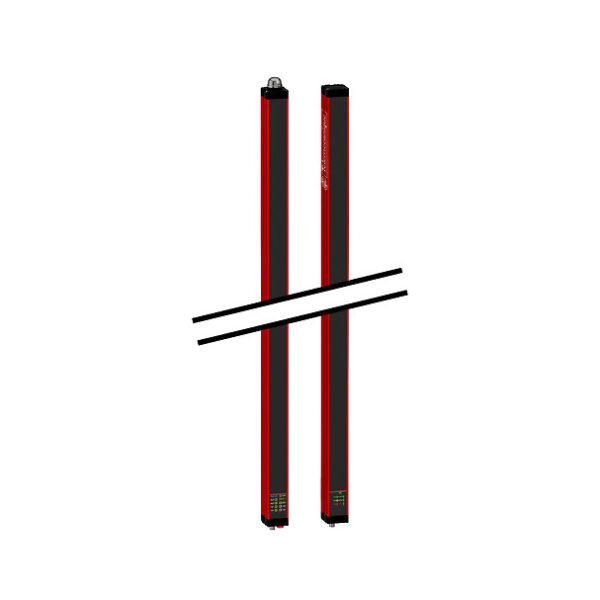

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware/soft config T4 R40 H181cm D4 12 m
جزئیات محصول
| وزن | 12000 گرم |
|---|---|
| ابعاد | 198 × 19.5 × 14 سانتیمتر |
| Range of product | Telemecanique Safety light curtains XUSL |
| Product or component type | Safety light curtain type 4 |
| Device short name | XUSL4M |
| Output type | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| Product specific applicatio | For hand protection |
| Type of start | Automaticmanual |
| Control type | Selected by wiring |
| Detection system | Transmitter-receiver system |
| Response time | 17.5 ms |
| Kit composition | 1 receiver, 1 transmitter, 1 user guide with certificate of conformity on CD-ROM, adjustable mounting bracket(s) |
| Emission | IR LED 950 nm |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Supply | power supply conforming to IEC 60204-1, Power supply conforming to IEC 61496-1 |
| Current consumption | 35 mA no-load transmitter, 85 mA no-load receiver, 900 mA with maximum load receiver |
| Output voltage | 24 V |
| Output circuit type | DC |
| Voltage drop | <0.5 V |
| Local signalling | 1 multi-colour LED transmitter, 10 dual colour LEDs receiver |
| Electrical connection | 1 male connector M12 12 pins receiver, 1 male connector M12 5 pins transmitter, 2 female connectors M12 5 pins transmitter, 3 female connectors M12 5 pins receiver |
| Function available | LED display of operating modes and faults, muting, Test |
| Material | Aluminium: casing, polycarbonate: front panel, polypropylene: end caps |
| Housing colour | Red RAL 3000 |
| Fixing mode | By fixing brackets |
| Offer type | Standard distance |
| Directives | 89/655/EEC – work equipment89/336/EEC – electromagnetic compatibility98/37/EEC – machinery |
| Product certifications | CETÜVcULus |
| Safety level | category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, Type 4 conforming to IEC 61496-1 |
| Environmental characteristi | Resistance to light disturbance conforming to IEC 61496-2 |
| Safety reliability data | PFHd = 2.30E-8 1/h conforming to IEC 61508 |
| IP degree of protection | IP65, IP67 |
