قیمت محصول
توضیحات

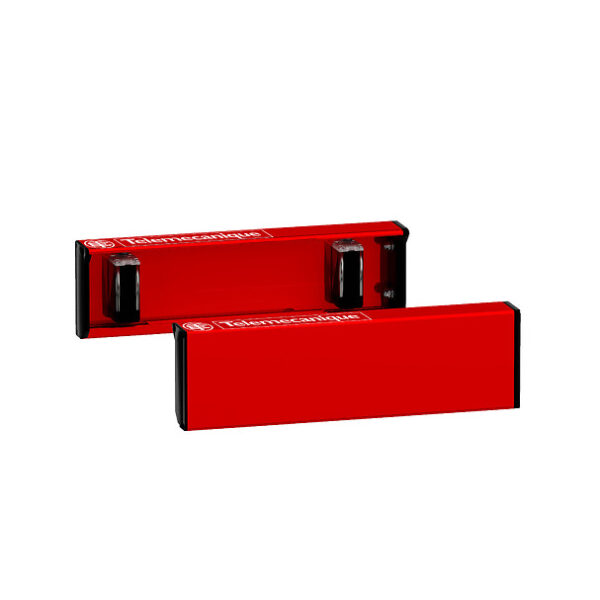

Multi beam prebuilt muting arms, Telemecanique Safety light curtains XUSL, light curtain arm L 2parallel beams high speed conveyor
جزئیات محصول
| وزن | 2760 گرم |
|---|---|
| ابعاد | 51 × 20 × 14.5 سانتیمتر |
| Range of product |
Telemecanique Safety light curtains XUSL |
| Product or component type |
Multi-beam prebuilt muting arms |
| Device short name |
XUSZAM |
| Output type |
2 discrete solid-state PNP (NO) |
| Product compatibility |
XUSL4M |
| Detection system |
Through beam |
| Product specific applicatio |
Conveyor system exit direction ,conveyor system high speed |
| Specific application of pho |
Detection of opaque parts |
| Sensing range |
> 32 cm space between package ,0…10 cm space between package |
| Response time |
< 100 ms |
| Kit composition |
quick start guide ,Transmitter + receiver |
| Emission |
IR LED 940 nm |
| [Us] rated supply voltage |
24 V DC +/- 20 % |
| Supply |
Via connector |
| Current consumption |
42 mA |
| Output voltage |
24 V |
| Output circuit type |
DC |
| Voltage drop |
<0.5 V |
| Switching capacity in mA |
100 mA |
| Local signalling |
2 yellow LED receiver |
| Housing colour |
Red RAL 3000 |
| Directives |
89/336/EEC – electromagnetic compatibility98/37/EEC – machinery |
| Product certifications |
CE |
| Safety reliability data |
PFHd = 2.73E-7 1/h |
| IP degree of protection |
IP65 |
| Shock resistance |
10 gn for 16 ms conforming to IEC 61496-1 |
| Vibration resistance |
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
14.5 CENTIMETER |
