قیمت محصول
توضیحات

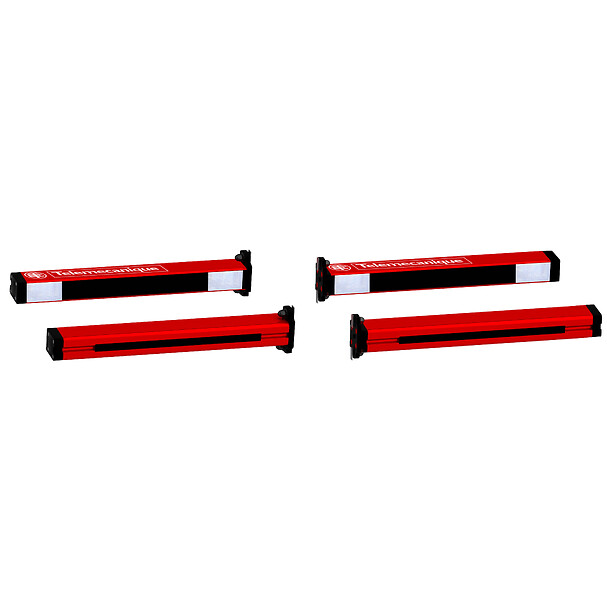

Single beam prebuilt muting arms, Telemecanique Safety light curtains XUSL, light curtain arm T 4parallel high speed conveyor
جزئیات محصول
| وزن | 4910 گرم |
|---|---|
| ابعاد | 120 × 20 × 14.5 سانتیمتر |
| Range of product | Telemecanique Safety light curtains XUSL |
| Product or component type | Single-beam prebuilt muting arms |
| Device short name | XUSZAS |
| Output type | 4 discrete solid-state PNP (NO) |
| Product compatibility | XUSL4M |
| Detection system | Polarised reflex |
| Product specific applicatio | Conveyor system entry/exit direction, conveyor system high speed |
| Specific application of pho | Detection of opaque parts |
| Sensing range | > 75 cm pallet length, > 75 cm space between package |
| Response time | < 100 ms |
| Kit composition | quick start guide, reflex system photo-electric sensor |
| Emission | IR LED |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Supply | Via connector |
| Current consumption | 42 mA |
| Output voltage | 24 V |
| Output circuit type | DC |
| Voltage drop | <0.5 V |
| Switching capacity in mA | 100 mA |
| Local signalling | 4 yellow LED receiver |
| Housing colour | Red RAL 3000 |
| Directives | 89/336/EEC – electromagnetic compatibility98/37/EEC – machinery |
| Product certifications | CE |
| Safety reliability data | PFHd = 2.73E-7 1/h |
| IP degree of protection | IP65 |
| Shock resistance | 10 gn for 16 ms conforming to IEC 61496-1 |
| Vibration resistance | 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 14.5 CENTIMETER |
