قیمت محصول
توضیحات

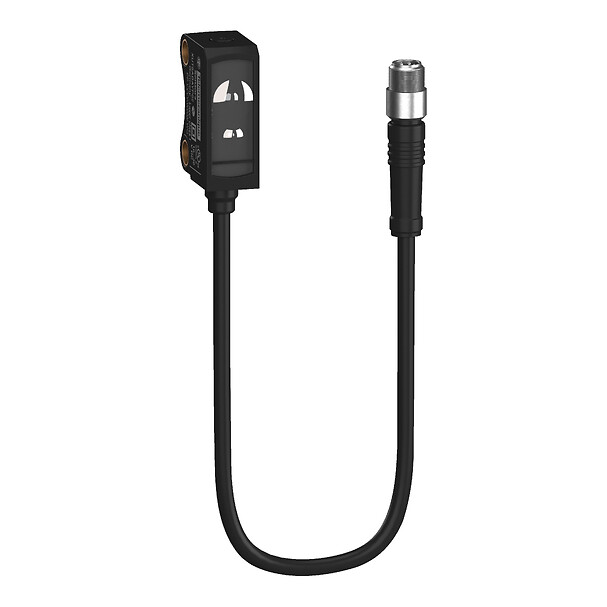

Photoelectric sensors XUT8, BGS, Blue light, Sn 100mm, IO-Link, Pigtail M8 20cm
جزئیات محصول
| وزن | 27 گرم |
|---|---|
| ابعاد | 6.1 × 3.1 × 9.1 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application packaging |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUT |
| Sensor design |
Sub-miniature |
| Detection system |
Diffuse with background suppression |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| [Sn] nominal sensing distan |
100-100 mm diffuse with background suppression |
| Discrete output type |
PNP/NPN autodetectIOLINK |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M8 ,4 pins |
| Product specific applicatio |
Background suppression blue light |
| Emission |
Blue light diffuse with background suppression |
| Enclosure material |
PUR |
| Lens material |
PMMA |
| Output type |
Solid state |
| Add on output |
50 mA ,Without |
| Status LED |
1 LED (green) for power ON ,1 LED (orange) for output state |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Current consumption |
<= 20 mA no-load |
| Delay first up |
300 MILLISECOND |
| Delay response |
500 MICROSECOND |
| Delay recovery |
300 MILLISECOND |
| Setting-up |
Sensitivity by IO-Linksensitivity adjustment with teach mode |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
9.1 CENTIMETER |
| Package 1 width |
3.1 CENTIMETER |
| Package 1 length |
6.1 CENTIMETER |
| Package 1 weight |
27 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
5 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
370 GRAM |
