قیمت محصول
توضیحات

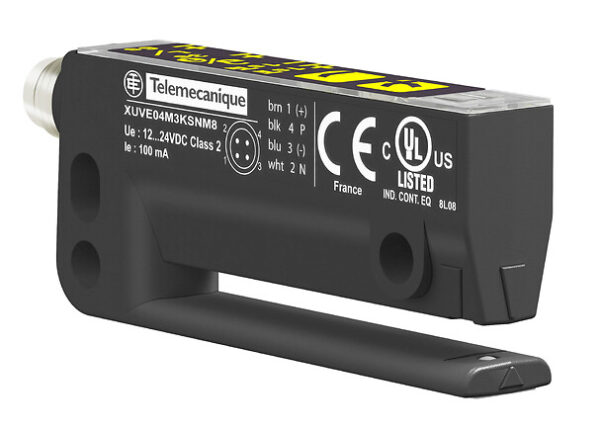

Photoelectric sensors XU, photoelec sensor label fork 40×3, 12…24 V DC, PNP NO/NC connect M8
جزئیات محصول
| وزن | 34 گرم |
|---|---|
| ابعاد | 8.2 × 6.2 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application packaging |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUV |
| Sensor design |
Fork |
| Detection system |
Thru beam |
| Emission |
Infrared |
| Type of setting |
With |
| Material |
PA (polyamide) 12 |
| Supply circuit type |
DC |
| Wiring technique |
4-wire |
| Discrete output type |
PNP |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M8 ,4 pins |
| Product specific applicatio |
Detection of labels |
| Enclosure material |
Polyamide |
| Setting-up |
Numeric potentiometer |
| Lens material |
PC |
| Accuracy |
+/- 0.05 mm at 150 m/min |
| Type of output signal |
Discrete |
| Label length |
2 MILLIMETER |
| Output type |
Solid state |
| Distance between labels |
2 MILLIMETER |
| Passing speed of object |
200 METER_PER_MINUTE |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Status LED |
adjustment mode and keypad locking: 1 LED (red) ,Output state: 1 LED (yellow) |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Maximum voltage drop |
– |
| Delay first up |
30 MILLISECOND |
| Delay response |
0.1 MILLISECOND |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
