وزن	200 گرم
ابعاد	16 × 11.2 × 4.8 سانتیمتر

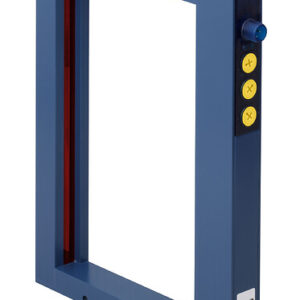

Range of product	Telemecanique Photoelectric sensors XU
Series name	Application material handling
Electronic sensor type	Photo-electric sensor
Sensor name	XUV
Sensor design	Frame
Detection system	Thru beam
Emission	–
Material	Metal
Supply circuit type	DC
Wiring technique	4-wire
Discrete output type	PNP or NPN
Discrete output function	1 NO or 1 NC programmable
Electrical connection	1 male connector M8, 4 pins
Product specific applicatio	Dynamic detection of passage of objects
Enclosure material	Painted aluminium
Lens material	Polycarbonate
Type of output signal	Discrete
Output type	Solid state
Add on output	With alarm output
[Us] rated supply voltage	24 V DC with reverse polarity protection
Status LED	–
Switching capacity in mA	<= 100 mA (overload and short-circuit protection)
Voltage drop	<2 V (closed state)
Switching frequency	500 Hz
Current consumption	<= 120 mA no-load
Time delay range	0…5 s off-delay delay
Delay first up	100 MILLISECOND
Maximum delay recovery	–
Setting-up	Sensitivity adjustment with potentiometer
Vibration resistance	25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 conforming to IEC 60529
Unit type of package 1	PCE
Number of units in package	1
Package 1 height	4.8 CENTIMETER
Package 1 width	11.2 CENTIMETER

XUVF60M8
