XUVH0312
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

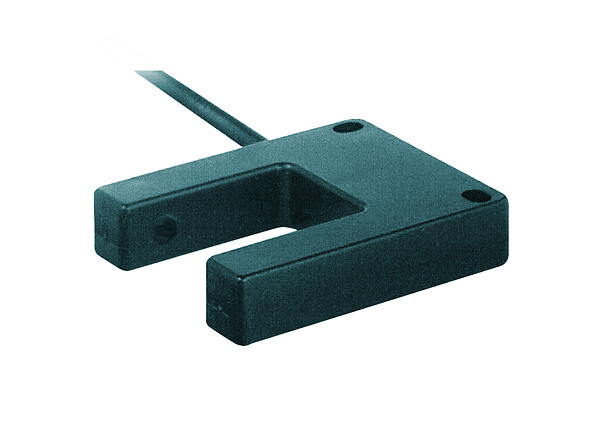

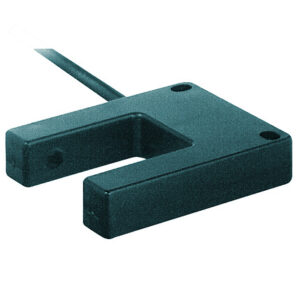

Photoelectric sensors XU, XUV, fork, handling, 30X30mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 100 گرم |
|---|---|
| ابعاد | 15 × 15 × 2.5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUV |
| Sensor design |
Fork |
| Detection system |
Thru beam |
| Emission |
– |
| Material |
Plastic |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
PNP |
| Discrete output function |
1 NO |
| Electrical connection |
Cable |
| Product specific applicatio |
Detection of flags in lifts/transtockers |
| Lens material |
PMMA |
| Enclosure material |
ABS/PC |
| Type of output signal |
Discrete |
| Output type |
Solid state |
| Status LED |
– |
| [Us] rated supply voltage |
24 V DC with reverse polarity protection |
| Cable composition |
3 x 0.34 mm² |
| Switching capacity in mA |
<= 150 mA (overload and short-circuit protection) |
| Switching frequency |
< 1 kHz |
| Delay first up |
30 MILLISECOND |
| Current consumption |
<= 20 mA no-load |
| Setting-up |
Without sensitivity adjustment |
| Maximum voltage drop |
<1.5 V (closed state) |
| Delay response |
0.5 MILLISECOND |
| Delay recovery |
0.5 MILLISECOND |
| Vibration resistance |
7 gn ,amplitude = +/- 1 mm (f = 10-42 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP54 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2.5 CENTIMETER |
| Package 1 width |
15 CENTIMETER |
| Package 1 length |
15 CENTIMETER |
| Package 1 weight |
100 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
25 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.834 KILOGRAM |
