قیمت محصول
توضیحات

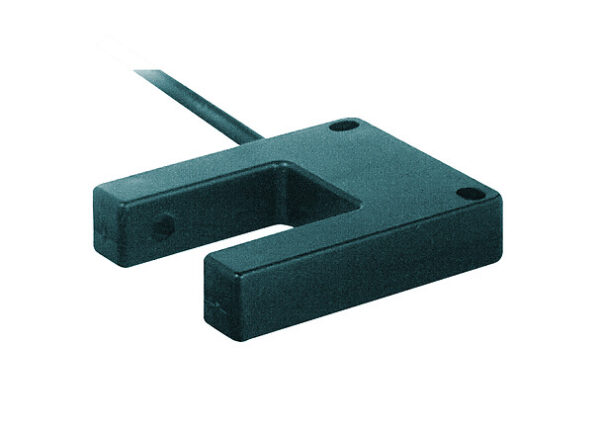

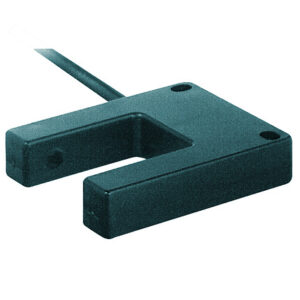

Photoelectric sensors XU, XUV, fork, handling, 30X30mm, 12…24 VDC, cable 5 m
جزئیات محصول
| وزن | 220 گرم |
|---|---|
| ابعاد | 15 × 15 × 2.5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUV |
| Sensor design |
Fork |
| Detection system |
Thru beam |
| Emission |
– |
| Material |
Plastic |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
PNP |
| Discrete output function |
1 NO |
| Electrical connection |
Cable |
| Product specific applicatio |
Detection of flags in lifts/transtockersstatic detection of passage of objects |
| Lens material |
PMMA |
| Enclosure material |
ABS/PC |
| Type of output signal |
Discrete |
| Output type |
Solid state |
| Status LED |
– |
| [Us] rated supply voltage |
24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 150 mA (overload and short-circuit protection) |
| Maximum delay recovery |
– |
| Switching frequency |
<= 1 Hz |
| Voltage drop |
<1.5 V (closed state) |
| Delay response |
0.5 ms |
| Delay first up |
30 MILLISECOND |
| Current consumption |
<= 20 mA no-load |
